Smart phase dimmer MICRO, ZigBee 3.0, 100-240Vac 200W max TRIAC
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Main Features:
•ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
•Fully compatible with Philips HUE, Home Assistant (thru ZigBee 2 MQTT) and other systems
•100-240VAC Wide Input and Output Voltage
•Supports resistive loads, capacitive loads or inductive loads
•1 Channel Output, Up to 250W
•Input and Output with Screw Terminals, Safe and Reliable
•Enables to control ON/OFF and light intensity of connected light source
•ZigBee end device that supports Touchlink commissioning
•Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
•Compatible with universal ZigBee gateway products
•Support power metering
•Mini Size, Easy to be Installed into a standard 86*86mm wall box

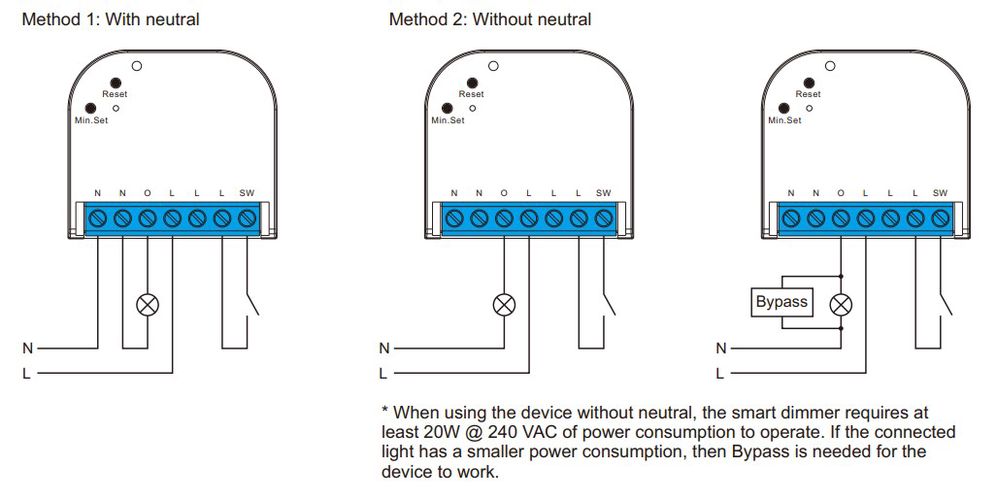

• Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
• Advanced microprocessor control
• Implemented algorithm of smart light source detection
• Active power and energy metering functionality
• Soft start function
• Innovative minimum dimming level and startup brightness setting function
• Works with various types of switches – momentary, toggle, three-way, etc.
• Active element: semiconductor electronic switch
• To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
Input / Output voltage: 100-240Vac
Output current: 01 - 1.1A
Maximum load: 200W @ 240Vac
Power metering
Push-dim option

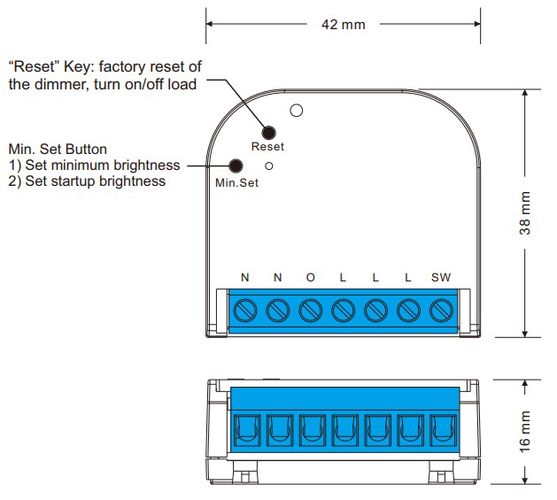

Measuments (mm): 42x38x16mm
Useful information
Specifications
Experimental product description generated by artificial intelligence
Sunricher Smart Phase Dimmer MICRO
The Sunricher Smart Phase Dimmer MICRO, also known as a ZigBee smart dimmer or light dimmer, offers precise control over your lighting system. This versatile device is perfect for single-color lighting applications.
Key Features and Benefits
- ZigBee 3.0 compatible: Ensures seamless integration with other ZigBee smart home devices.
- Wide voltage range: Operates on 100-240Vac, suitable for various global power supplies.
- High power handling: Supports a maximum load of 200W, accommodating a range of lighting fixtures.
- Versatile load compatibility: Works with resistive, capacitive, and inductive loads.
- Easy installation: Designed for standard 86x86mm wall boxes.
- Compact size: Its small form factor makes it ideal for discreet integration.
- Advanced features: Includes soft start, minimum dimming level, and startup brightness settings for enhanced control and energy efficiency.
Applications
Ideal for controlling the brightness of various lighting types, including:
- Incandescent lighting
- Halogen lamps
- Dimmable LED bulbs
- Dimmable CFL lamps
Why Choose Sunricher?
Sunricher is a trusted brand in the smart home industry, known for its reliable products and commitment to quality. The Smart Phase Dimmer MICRO provides a simple yet effective solution for smart lighting control, offering a balance of functionality and ease of use.
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 100-240Vac |
| Maximum Load | 200W |
| Communication Protocol | ZigBee 3.0 |
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
