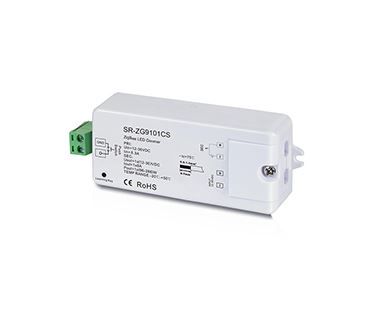

LED controller ZigBee 12-36V, 1x8A with PUSH-DIM, Sunricher

You can use this control by connecting it to the H - U - E or TUYA / Smart Life smart home system using a ZigBee bridge.
In this way you can control LED strips or other LED luminaires using stabilised voltage (12-36Vdc) by smartphone, voice (with Google Home Assistant Mini) and other means.

Voltage: 12-36Vac
Power: 1x8A (96W @ 12V, 192W @ 24V)
Size 95x37x20mm
Control protocol: ZigBee 3.0
Optional feature: PUSH-DIM (ability to switch on/off or dim the light with a non-fixed switch)

Controller interfacing with H - U - E system:

1. Connect the SR-ZG9101CS to the mains power supply (12-36Vdc) (the controller must be within 20 metres of the H-U-E control panel)
2. In the H-U-E application, select Settings > Add light > Search
3. Press the button 5 times briefly (blink three times, the device returns to factory settings) and the light starts blinking slowly.
4. After a few seconds, press the prog. button 3 times to start the pairing mode (LED flashes slowly)
5. When the H - U - E control panel detects the controller, the LED will blink rapidly three times. This means that pairing is complete.

For more information, please refer to "PDF user manual" and the package
