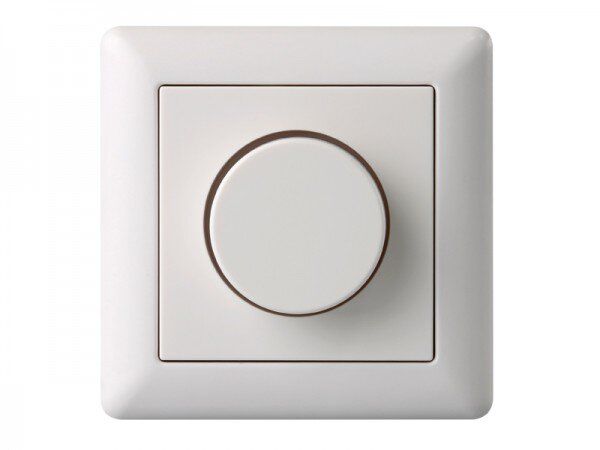

Light dimmer 0/1-10V, 230Vac, 1-wire, Sunricher
Product Code: SR-2202N-1-10V
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Light intensity controller for controlling 0-10V or 1-10V dimmable LED power supplies

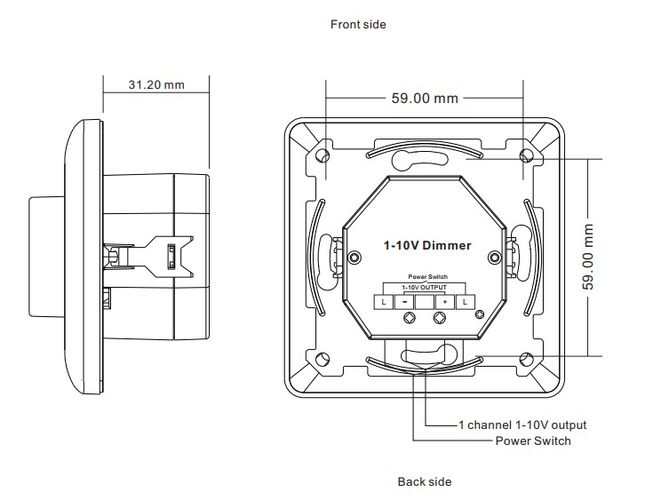

Size: 80x80x52.3mm
Wall mountable
Input voltage 230VAC (internal power supply changing from 230VAC to 0-10V signal)
Housing colour white (plastic)
Can be used with other manufacturers' covers: BEKER: S1/B1/B3/B7 glass. GIRA: Standard55/E2/Event/Esprit. JUNG: A500/Aplus. MERTEN: M-smart/M-Arc/M-Plan
Size: 80x80x52.3mm
Wall mountable
Input voltage 230VAC (internal power supply changing from 230VAC to 0-10V signal)
Housing colour white (plastic)
Can be used with other manufacturers' covers: BEKER: S1/B1/B3/B7 glass. GIRA: Standard55/E2/Event/Esprit. JUNG: A500/Aplus. MERTEN: M-smart/M-Arc/M-Plan
The description was translated using an automatic translator. If you notice any discrepancies, please notify us by email: [email protected].
Useful information
Specifications
SKU
256192
Weight
0.196 kg.
Warranty period (months)
36
Input voltage DC from, V
230
Brand
Connection type
Sunricher wired
Type
The controller
Control
One color
Control current, mA
Sunricher wired
Product code
SR-2202N-1-10V
Input voltage DC to, V
230
