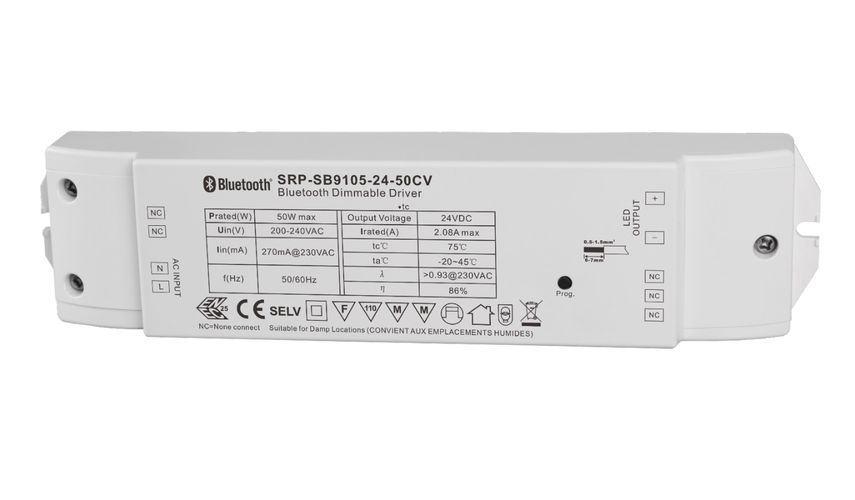

LED power supply, 24Vdc, 50W, with SR-BUS controller, Bluetooth, Sunricher
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Features:
- Dimmable LED driver with RF+Bluetooth control, dimming range 0.1%-100%
- Max. output power 50W
- 1 channel 12V/24V constant voltage output
- Class Ⅱ power supply, full isolated plastic case
- High power factor and efficiency
- To switch and dim single color LED lighting
- Controlled through both smart App and remote controls, no gateway required
- 2.4GHz global frequency
- Easy & quick pairing to the smart App by simply pushing the button
- Mesh network, much longer control distance, transmits received signal to neighbor devices
- Up to 30m transmission distance between every two neighbour devices
- Encrypted two-way communication, quick status feedback, safe & reliable data transmission
- Compatible with universal RF+Bluetooth remotes, each LED controller can pair to max. 8 remotes
Technical data:
| Output voltage | 24V DC |
| Max. current | 2.08A |
| Rated Power | 50W |
| Input Voltage Range | 200-240V AC |
| Frequency | 50/60Hz |
| Power Factor (Typ.) | >0.9 |
| Efficiency (Typ.) | 88% @ 230VAC |
| Input Current | 0.27A @ 230VAC |
| Inrush Current (Typ.) | COLD START Max. 2A @ 230VAC |
| Protections | Over Current - auto recovery after fault removed Over Temperature - auto recovery after fault removed |
| Working Temp. | -20℃ ~ +45℃ |
| Working Humidity | 10% ~ 95% RH non-condensing |
| Max. Case Temp. | 85℃ (Ta=”45℃”) |
| Storage Temp. & Humidity | -40℃ ~ +80℃, 10% ~ 95% RH |
| Dimensions | 210 x 50 x 32mm |
Pair/delete the pairing with RF+Bluetooth remote
1. Do wiring according to connection diagram.
2. Pair LED driver with RF+Bluetooth remote: please refer to the instruction of the remote that you would
like to pair with.
3. Delete the pairing:
(1) Wire up the LED driver correctly, power on.
(2) Press and hold down the “ Prog.” button on the driver for over 3 seconds (or reset power of the device 8 times continuously if the button is not accessible to factory reset the device) until the connected light flashes, which means well deleted.
Note: factory resetting will restore all configured parameters of the device on the APP to factory default setting.
Pair with smart APP
1. Do wiring according to connection diagram.
2. Download EasyThings APP from IOS APP Store or Android Google Play to your smart phone or tablet by
searching “EasyThings”. (As shown in Figure 1)
3. Enable Bluetooth on your smart phone or tablet. (As shown in Figure 2)
4. Run Easythings APP, tap add button on the APP to add device, then choose “Discover devices” to discover device, then short press the “Prog.” button on the dr twice (or reset power of the dr twice continuously) to set the device into pairing to APP mode. (As shown in Figure 3 & Figure 4 & Figure 5)
Note: multiple drivers can be discovered by the APP at the same time.
5. Once the device/devices are discovered, tick the device/devices and tap “Save” button, the device/devices will be added successfully. (as shown in Figure 6)
