PicoScope 3418E, 4 kanalai, 500 MHz, AWG, FGEN, with 4 x P1053 probes, PICO
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
500 MHz, 5 GS/s, 2 GS USB-C®-powered PC oscilloscopes
Where power and performance meet portability
• 500 MHz with 5 GS/s sampling rate
• 10-bit resolution (14 bits using enhanced resolution)
• 2 GS ultra-deep capture memory
• Function/arbitrary waveform generator included

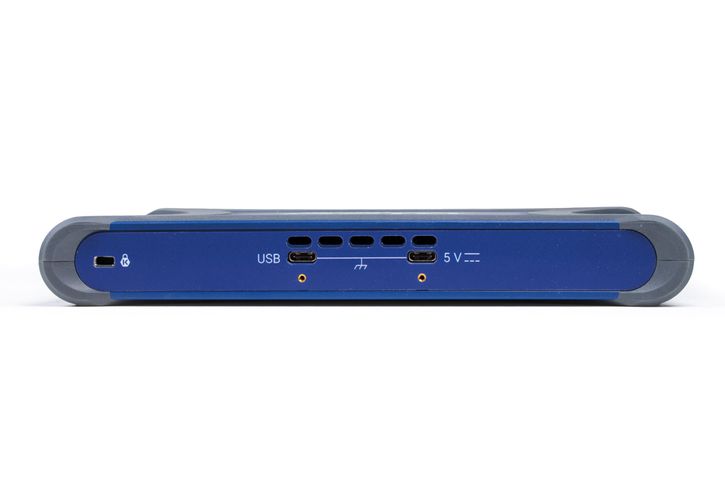

• Compact, portable and USB powered
• 40 serial protocol decoders included as standard
• Segmented memory, persistence and fast waveform updates
• Advanced math, measurements, masks and digital triggering
• PicoScope 7 for Windows®, Mac® & Linux® with free updates
• Support for LabView®, MATLAB® and writing your own code
• 5-year warranty and free technical support
Product overview

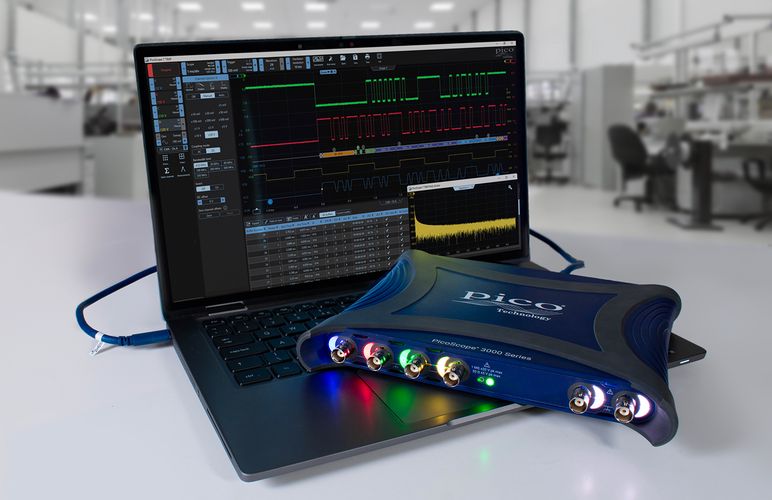

The PicoScope 3000E Series is a range of USB-powered PC oscilloscopes which are small, light, portable and provide high-performance specifications ideal for engineers working on advanced electronics and diverse embedded system technologies, either in the laboratory or on the move.
Supported by the advanced PicoScope 7 Test and Measurement software, the PicoScope 3000E Series enables the rapid cost-effective debug and performance validation of complex analog and power electronic designs. It also offers an ideal package for many other applications including embedded systems design, research, test, education, service and repair.
High bandwidth, high sampling rate, deep memory
With compact size, low cost and input bandwidths up to 500 MHz, there is no compromise on performance. This bandwidth is matched by a real-time sampling rate of up to 5 GS/s, enabling detailed display of high frequency signals.
Useful information
Specifications
Experimental product description generated by artificial intelligence
PicoScope 3418E: High-Performance PC Oscilloscope
The PicoScope 3418E is a 4-channel, 500 MHz PC oscilloscope from Pico Technology. This PC-connected oscilloscope offers high bandwidth, high sampling rate, and deep memory, making it ideal for engineers working on advanced electronics and embedded systems.
Key Features and Specifications
- 4 Channels: Simultaneously capture signals from four different sources.
- 500 MHz Bandwidth: Accurately capture high-frequency signals.
- 5 GS/s Sample Rate: Capture fast-changing signals with high resolution.
- AWG and FGEN: Built-in arbitrary waveform generator and function generator for signal generation and testing.

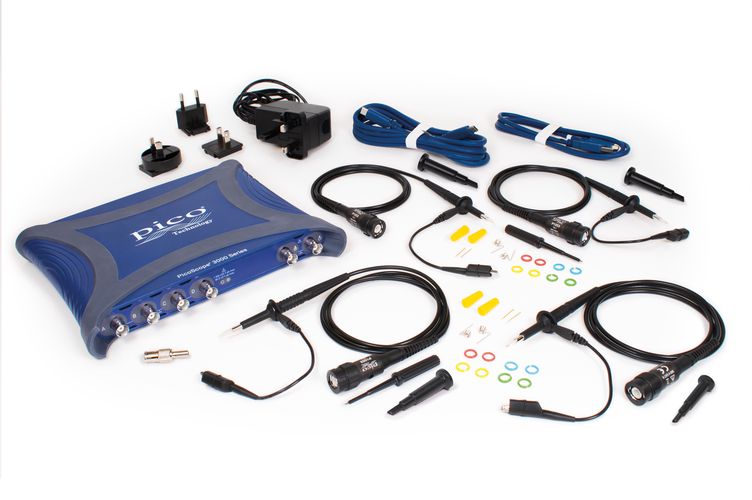

- Includes 4 x P1053 Probes: Ready to use out of the box.
- Deep Memory: Capture long-duration waveforms with high resolution.
- Advanced Software: PicoScope 7 software provides advanced analysis tools.
Applications
The PicoScope 3418E is suitable for a wide range of applications, including:
- Embedded systems design
- Research and development
- Education
- Service and repair
Why Choose PicoScope 3418E?
The PicoScope 3418E combines high performance with portability and ease of use. Its compact design and USB power make it ideal for both laboratory and field use. The included software offers a comprehensive suite of analysis tools, making it a versatile and powerful solution for a variety of applications.
| Feature | Benefit |
|---|---|
| High Bandwidth | Accurate capture of high-frequency signals |
| Deep Memory | Capture long-duration waveforms |
| AWG/FGEN | Generate custom test signals |
| Portable Design | Use in the lab or in the field |
| Powerful Software | Advanced analysis and debugging capabilities |
Note: Specific details beyond those listed may vary. Please refer to the manufacturer's specifications for complete information.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
