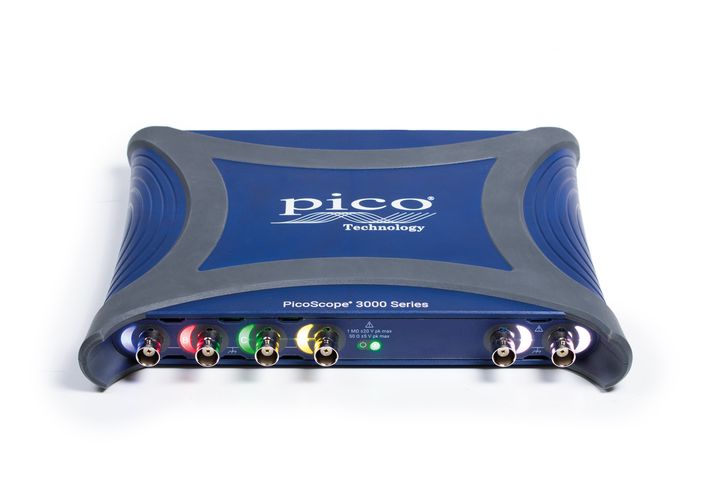

PicoScope 3417E, 4 kanalai, 350 MHz, AWG, FGEN, with 4 x P1033 probess, PICO
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
350 MHz, 5 GS/s, 2 GS USB-C®-powered PC oscilloscopes
Where power and performance meet portability
· 350 MHz or 500 MHz with 5 GS/s sampling rate
· 10-bit resolution (14 bits using enhanced resolution)
· 2 GS ultra-deep capture memory
· Function/arbitrary waveform generator included

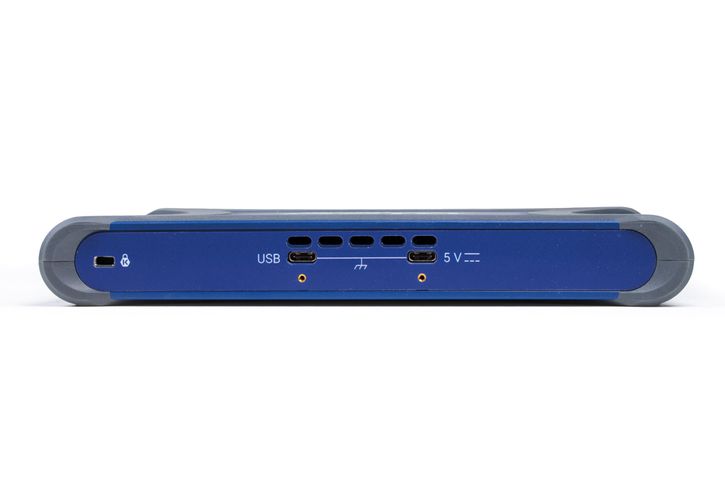

· Compact, portable and USB powered
· 40 serial protocol decoders included as standard
· Segmented memory, persistence and fast waveform updates
· Advanced math, measurements, masks and digital triggering
· PicoScope 7 for Windows®, Mac® & Linux® with free updates
· Support for LabView®, MATLAB® and writing your own code
· 5-year warranty and free technical support
Product overview
The PicoScope 3000E Series is a range of USB-powered PC oscilloscopes which are small, light, portable and provide high-performance specifications ideal for engineers working on advanced electronics and diverse embedded system technologies, either in the laboratory or on the move.
Supported by the advanced PicoScope 7 Test and Measurement software, the PicoScope 3000E Series enables the rapid cost-effective debug and performance validation of complex analog and power electronic designs. It also offers an ideal package for many other applications including embedded systems design, research, test, education, service and repair.
High bandwidth, high sampling rate, deep memory
With compact size, low cost and input bandwidths up to 500 MHz, there is no compromise on performance. This bandwidth is matched by a real-time sampling rate of up to 5 GS/s, enabling detailed display of high frequency signals.
Useful information
Specifications
Experimental product description generated by artificial intelligence
PicoScope 3417E: High-Performance PC Oscilloscope
The PicoScope 3417E is a 4-channel, 350 MHz PC-connected oscilloscope from Pico Technology. This oscilloscope offers a powerful combination of features and performance in a compact, portable package, ideal for engineers working on advanced electronics and embedded systems.
Key Features and Specifications
- 4 Channels: Simultaneously capture signals from four different sources.
- 350 MHz Bandwidth: Accurately capture high-frequency signals.
- AWG and FGEN: Built-in arbitrary waveform generator and function generator for signal generation and testing.

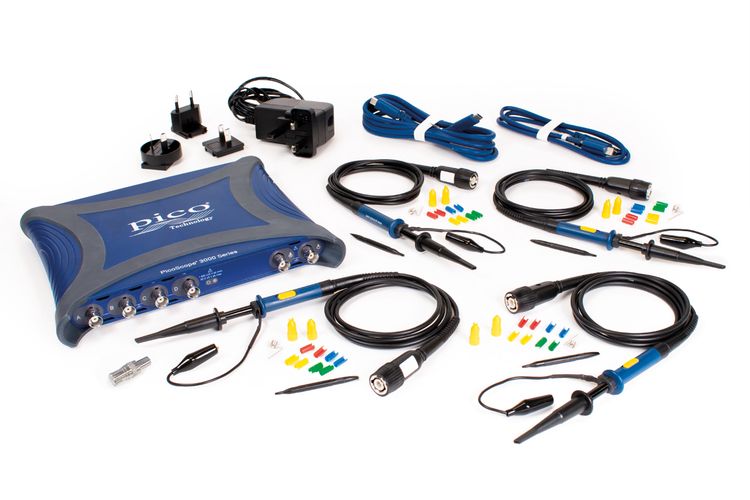

- Includes 4 x P1033 Probes: Ready to use out of the box.
- USB Powered: Convenient and portable.
Applications
The PicoScope 3417E is suitable for a wide range of applications, including:
- Embedded systems design
- Research and development
- Education
- Service and repair
Why Choose PicoScope 3417E?
The PicoScope 3417E provides high performance, versatility, and ease of use in a compact and portable package. Its advanced features and software make it an ideal choice for engineers and researchers needing a powerful and flexible oscilloscope solution.
| Feature | Benefit |
|---|---|
| High Bandwidth | Accurate capture of high-frequency signals |
| Multiple Channels | Simultaneous signal acquisition |
| AWG/FGEN | Signal generation and testing capabilities |
| Deep Memory | Capture long-duration waveforms |
| USB Powered | Portability and convenience |
For detailed specifications, please refer to the product manual.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
