74HC00 Quadruple 2-Input NAND Gates

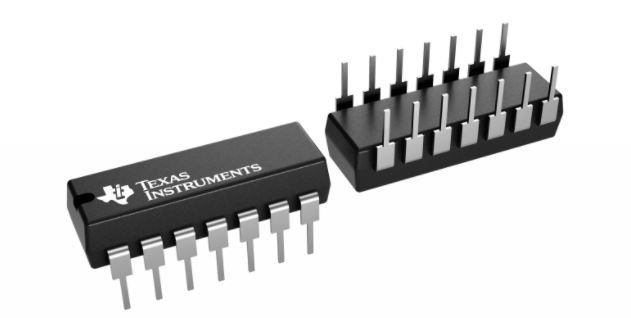

The Texas Instruments SN74HC00 is a quadruple 2-input NAND gate. This integrated circuit, also known as a logic IC, is a versatile component used in various digital logic applications.
Key Features
- Buffered inputs
- Wide operating voltage range: 2V to 6V
- Wide operating temperature range: -40°C to +85°C
- High fanout
- Low power consumption
Functionality
Each gate within the 74HC00 IC performs the Boolean function Y = A * B (A AND B). This means the output (Y) is HIGH only when both inputs (A and B) are HIGH. Otherwise, the output is LOW.
Applications
- Alarm/tamper detection circuits
- S-R latches
- Other digital logic applications
Why Choose This Product?
The 74HC00 offers a combination of features that make it a reliable and efficient choice for various digital logic designs. Its wide voltage and temperature ranges ensure operation across a broad spectrum of conditions. The buffered inputs improve noise immunity, while the low power consumption contributes to energy efficiency. The high fanout capability allows it to drive multiple loads simultaneously.
| Parameter | Value |
|---|---|
| Package | DIP14 |
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
