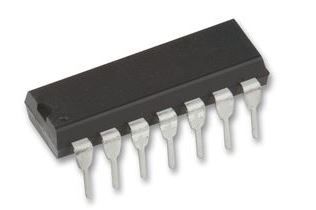

Integrated Circuit 74HC02 DIP14
The TEXAS INSTRUMENTS SN74HC02, also known as a Quadruple 2-Input Positive-NOR Gates, is a high-performance logic IC that offers several key advantages.
Main Parameters and Functions
This integrated circuit comprises four independent 2-input NOR gates. Each gate executes the Boolean function Y = A + B using positive logic. This means the output (Y) is LOW only when both inputs (A and B) are HIGH; otherwise, the output is HIGH.
Applications
- Alarm/tamper detection circuits
- S-R latches
Its versatility makes it suitable for a wide range of digital logic applications.
Why Choose This Product?
- Buffered inputs: Improves noise immunity and signal integrity.
- Wide operating voltage range: Operates reliably across a broad voltage spectrum (2V to 6V).
- Wide operating temperature range: Functions correctly in diverse temperature conditions (-40°C to +85°C).
- High fanout: Can drive up to 10 LSTTL loads.
- Low power consumption: Significantly reduces power consumption compared to LSTTL logic ICs.
The 74HC02 DIP14 offers a robust and efficient solution for various digital logic designs. Its wide operating ranges and high performance make it a reliable choice for diverse applications.
| Feature | Benefit |
|---|---|
| Buffered Inputs | Improved Noise Immunity |
| Wide Voltage Range | Versatility and Flexibility |
| Wide Temperature Range | Reliable Operation in Diverse Environments |
| High Fanout | Drives Multiple Loads |
| Low Power Consumption | Energy Efficiency |
