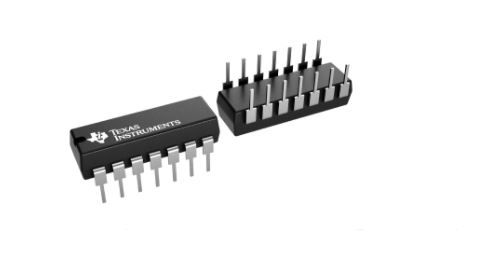

Integrated circuit CD40106 DIP14 RoHS
The CD40106B is a CMOS Hex Schmitt-Trigger Inverter from Texas Instruments. This integrated circuit is part of the Logic ICs category and is RoHS compliant.
Main Parameters and Functions
This device consists of six Schmitt-Trigger inverters. Each circuit functions as an inverter with a Schmitt-Trigger input. The trigger switches at different points for positive- and negative-going signals. The difference between these points is defined as hysteresis voltage.
- Schmitt-Trigger Inputs
- Hysteresis Voltage (Typical): 0.9 V at VDD = 5 V, 2.3 V at VDD = 10 V, 3.5 V at VDD = 15 V
- Noise Immunity Greater Than 50%
- Standardized, Symmetrical Output Characteristics
- Low Power Consumption
Uses
The CD40106B is suitable for a variety of applications, including:
- Wave and Pulse Shapers
- High-Noise-Environment Systems
- Monostable Multivibrators
- Astable Multivibrators
Why Choose This Product?
The CD40106B offers several key advantages:
- Reliable performance
- Wide operating voltage range
- Low power consumption
- High noise immunity
- Standardized symmetrical output characteristics
| Part Number | Package | Body Size (Nom) |
|---|---|---|
| CD40106BF | CDIP (14) | 6.92 mm x 19.94 mm |
| CD40106BE | PDIP (14) | 6.30 mm x 19.31 mm |
| CD40106BM | SOIC (14) | 3.90 mm x 8.65 mm |
| CD40106BNSR | SO (14) | 5.30 mm x 10.20 mm |
| CD40106BPWR | TSSOP (14) | 4.40 mm x 5.00 mm |
Note: This description is based on available data and may not include all possible features or specifications. Please refer to the datasheet for complete information.
