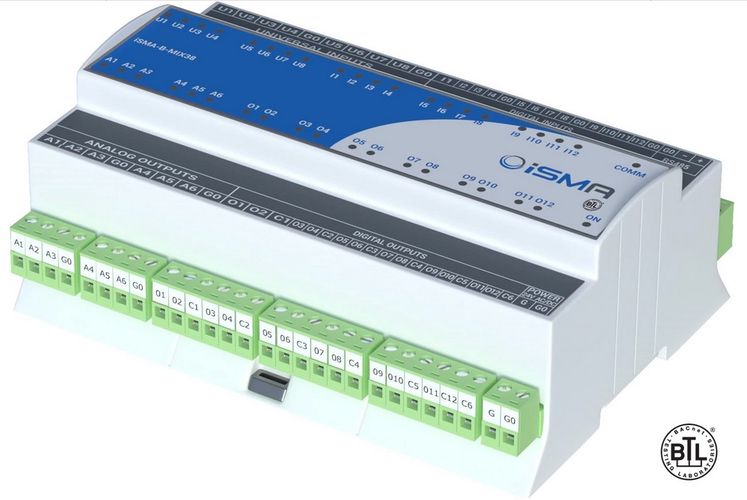

Expansion Module iSMA-B-MIX38 12DI, 8UI, 6AO, 12DO, Modbus RTU/ASCII, BACnet MSTP
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
MIX series of I/O modules with RS485 and IP (2x Ethernet) have been designed for building distributed control systems using MAC36, AAC20 or another controller. Each MIX module is equipped with the most commonly used types od I/O in building automation. Depending on the version, the device will have 18 or 38 inputs and outputs, a mix of all types of I/O in one unit. All I/O modules have BTL and UL certificates.
The modules with RS485 and IP (2x Ethernet) are factory-equipped with the two most popular open communication protocols: Modbus (ASCII, RTU, TCP/IP) and BACnet (MSTP, IP), which are selected using DIP switches. Rotary switches are used to set the module address, which facilitates and accelerates the process of commissioning the system. Built-in mini USB allows for the initial configuration of the unit without external power supply.
Built-in Modbus Gateway TCP/IP to Modbus ASCII/RTU, enables to connect additional modules/devices that communicate via Modbus RS485.
Thanks to supporting open communication standards MIX modules can be installed in both new and completed installations, as part of existing BMS. This versatile device will fit any BMS perfectly.
Useful information
Specifications
Experimental product description generated by artificial intelligence
Expansion Module iSMA-B-MIX38
The iSMA CONTROLLI iSMA-B-MIX38 12DI, 8UI, 6AO, 12DO, Modbus RTU/ASCII, BACnet MSTP is a versatile and powerful expansion module designed for building distributed control systems. This I/O module is part of the MIX series, known for its wide range of I/O types and compatibility with various communication protocols.
Key Features and Functions
This expansion module offers a comprehensive set of features, making it suitable for a wide range of applications:
- Universal Inputs (8): Support various sensor types, including temperature, voltage, current, and resistance measurements, as well as dry contact inputs. These inputs offer 16-bit resolution for increased accuracy.
- Digital Inputs (12): Provide high-speed pulse counting capabilities up to 100 Hz.
- Analog Outputs (6): Deliver 0-10V DC output with a maximum load of 20mA per channel (60mA total).
- Digital Outputs (12): Relay outputs capable of handling various loads.
- Communication Protocols: Supports Modbus RTU/ASCII and BACnet MSTP, ensuring seamless integration with existing building management systems (BMS).
Applications
The iSMA-B-MIX38 finds applications in various building automation scenarios, including:
- HVAC control
- Lighting management
- Security systems
- Process monitoring
Why Choose iSMA-B-MIX38?
The iSMA-B-MIX38 stands out due to its:
- Versatility: Wide range of I/O types in a single module.
- Flexibility: Supports multiple communication protocols.
- Ease of Use: Simple addressing and configuration.
- Reliability: Built with high-quality components.
This I/O module is ideal for both new installations and upgrades to existing systems. Its open communication standards and versatile I/O capabilities make it a valuable asset for any building automation project.
| Parameter | Value |
|---|---|
| Universal Inputs | 8 |
| Digital Inputs | 12 |
| Analog Outputs | 6 |
| Digital Outputs | 12 |
| Communication Protocols | Modbus RTU/ASCII, BACnet MSTP |
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
