Product description
MIX series of I/O modules with RS485 and IP (2x Ethernet) have been designed for building distributed control systems using MAC36, AAC20 or another controller. Each MIX module is equipped with the most commonly used types od I/O in building automation. Depending on the version, the device will have 18 or 38 inputs and outputs, a mix of all types of I/O in one unit. All I/O modules have BTL and UL certificates.
The modules with RS485 and IP (2x Ethernet) are factory-equipped with the two most popular open communication protocols: Modbus (ASCII, RTU, TCP/IP) and BACnet (MSTP, IP), which are selected using DIP switches. Rotary switches are used to set the module address, which facilitates and accelerates the process of commissioning the system. Built-in mini USB allows for the initial configuration of the unit without external power supply.
Built-in Modbus Gateway TCP/IP to Modbus ASCII/RTU, enables to connect additional modules/devices that communicate via Modbus RS485.
Thanks to supporting open communication standards MIX modules can be installed in both new and completed installations, as part of existing BMS. This versatile device will fit any BMS perfectly.
Useful information
Specifications
Experimental product description generated by artificial intelligence

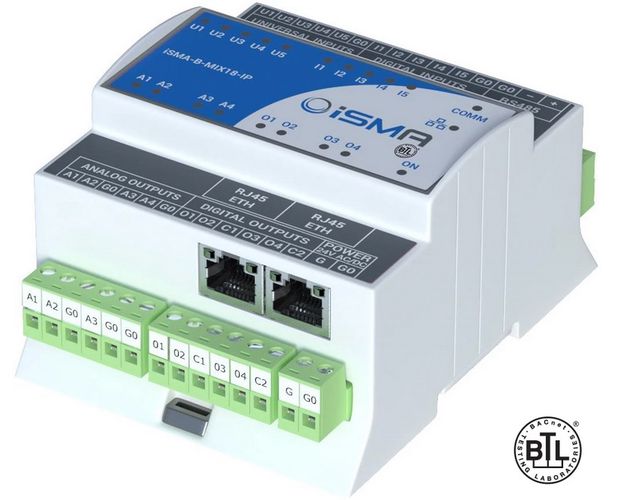

iSMA-B-MIX18-IP Expansion Module
The iSMA-B-MIX18-IP is a versatile expansion module designed for building distributed control systems. It's part of the iSMA CONTROLLI MIX series, known for its comprehensive I/O capabilities and compatibility with various building automation systems.
Key Features and Functions
- Universal Inputs: Offers voltage, current, resistance, and temperature measurements with high accuracy.
- Digital Inputs: Provides dry contact inputs and high-speed pulse counters.
- Analog Outputs: Delivers 0-10V DC outputs with a maximum load capacity.
- Digital Outputs: Features relay outputs for direct control of various devices.
- Communication Protocols: Supports Modbus TCP/IP and BACnet IP for seamless integration into existing systems.
Applications
This expansion module is ideal for a wide range of applications in building automation, industrial control, and other areas requiring versatile I/O capabilities and robust communication protocols.
Why Choose iSMA-B-MIX18-IP?
The iSMA-B-MIX18-IP offers a powerful combination of features, making it a cost-effective and reliable solution for your expansion needs. Its support for industry-standard communication protocols ensures easy integration with existing systems. The module's compact design and DIN-rail mounting make installation simple and convenient.
| Feature | Description |
|---|---|
| Universal Inputs | 5 |
| Digital Inputs | 5 |
| Analog Outputs | 4 |
| Digital Outputs | 4 |
| Communication Protocols | Modbus TCP/IP, BACnet IP |
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
