Product description

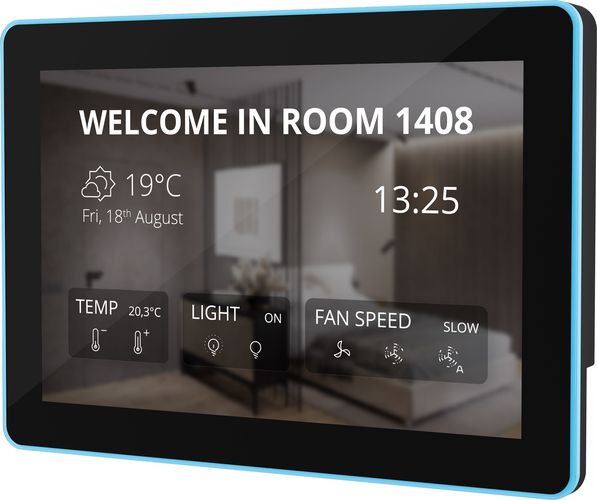

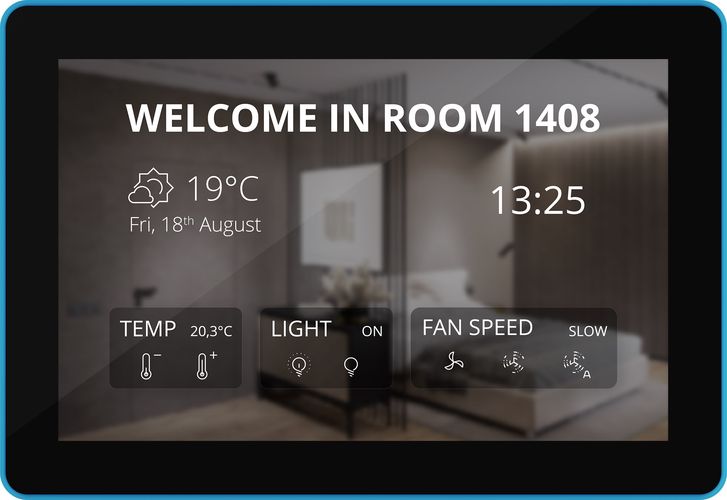

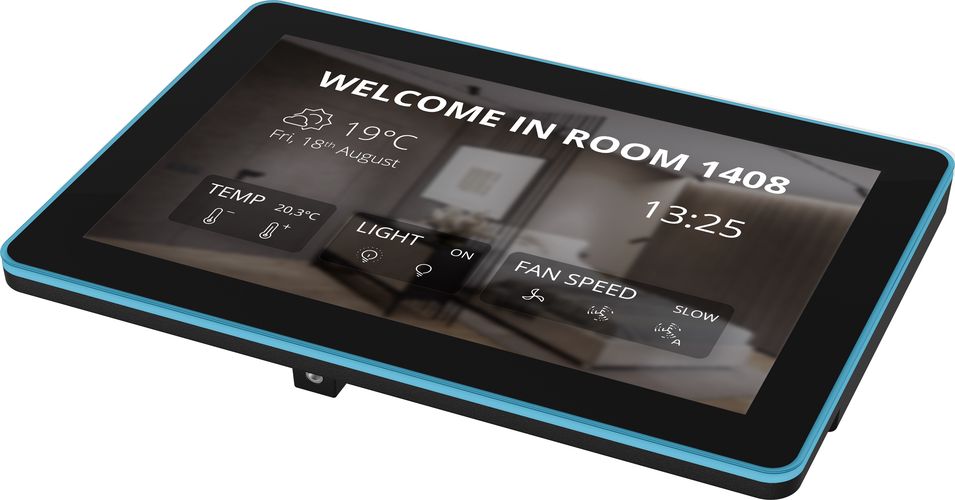

PA-LED10-B 10.1β LCD universal room panel with LED bar, Android operating system, and dedicated iC SmartView application
Communication with building occupants.
Android PA-LED-10 panels are the perfect solution for modern interiors of residential and commercial buildings. The panels not only add an attractive look to the building space, but also significantly enhance its usability with unique features. The panel allows to display and control any HTML5-based application thanks to the dedicated iC SmartView platform. The built-in multicolor LED bar allows for direct interaction with building users through visual communication.
Simplified installation with PoE+ support
PA-LED panels offer a user-friendly design offering installation in both landscape and portrait modes, that seamlessly integrates into any environment. Supporting both Power over Ethernet (PoE) and DC power supply, our panels come equipped with metal mounting brackets for easy installation on any surface.
Technical Specification
Display
Size 10,1ββ
Aspect Ratio 16:10
Resolution: 1280:800
Contrast 800:1
Luminance 250 cd/m2
Active Area 217.40 x 136.40 mm / 8.56 x 5.37 in
View angle 85/85/85/85(L/R/U/D)
Installation

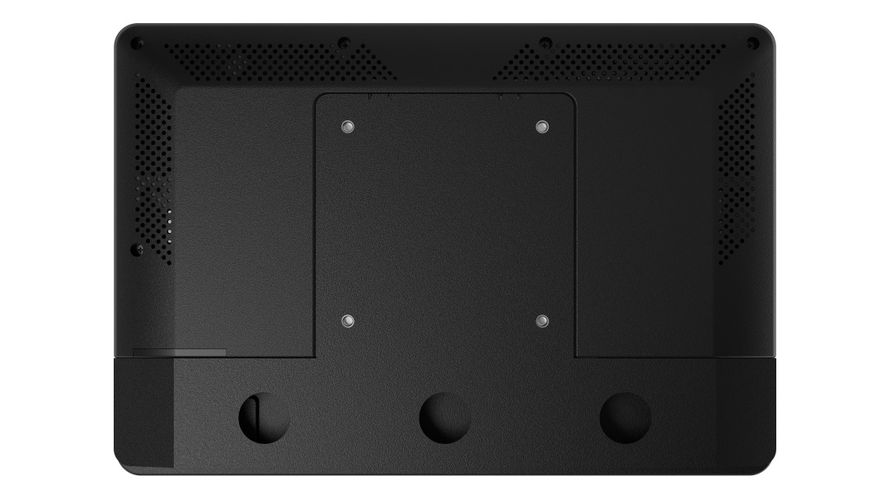

Metal bracket for wall mounting
Easy-mount wire slot

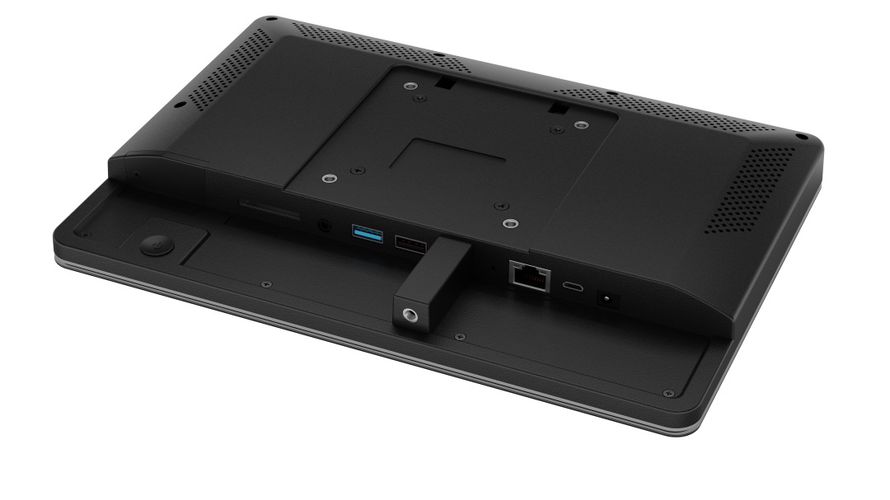

Interfaces
SD card
USB
RJ45 with PoE+
WiFi 802.11 b/g/n
Bluetooth Bluetooth 4.2
Audio: 3.5 mm earphone, 2 speakers, 1.5 W
Power supply
Power input 12 V DC / 1.5 A
PoE+ IEEE802.3at, class 4, 25.5 W
Power adapter for EU, US, and UK
