USB Type A, Type C Tester 4~24VDC, A; 0.05~3ADC, QC 3.0 ; C 0.05~5ADC, QC 4.0; 0~99999mAh; 0~1000Wh;
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

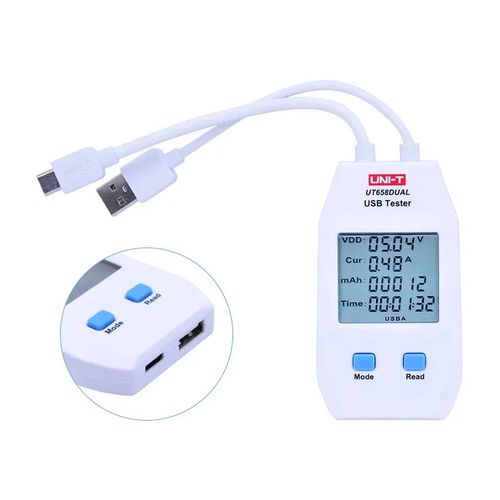

UT658 Series USB Testers
The second generation UT658 series USB testers can inspect USB chargers, portable power sources, USB type A and C cables and other electronic charging devices. UT658 measures output voltage, current, energy, capacity, circuit equivalent resistance, D+ and D- voltages of USB data cables. This series is designed to be precise, reliable, stable, and portable. They are great tools for applications such as manufacturing verification, engineering testing, and DIYers.
Models in UT658 series: UT658A, UT658C, UT658DUAL, UT658LOAD
Features of UT658 Series USB Testers
Certifications: CE, UKCA
● Type-A/C interface
● CE certification
● 10 sets of data storage
● Loop equivalent resistance measurement (1-480Ω)
● Same screen shows voltage, current, power, capacity, etc.
● Support fast charge protocol
Specifications of UT658 Series USB Testers
|
Specifications |
Description |
UT658A |
UT658C |
UT658DUAL |
UT658LOAD |
|
Input & Output ports (Type A) |
√ |
√ |
√ |
||
|
Input & Output ports (Type C) |
√ |
√ |
|||
|
Data/charging protocol |
2.0/3.0 |
2.0/4.0 |
2.0/(3.0/4.0) |
2.0/3.0 |
|
|
Voltage range |
4~24VDC, resolution: 0.01V |
√ |
√ |
√ |
√ |
|
Current range (Type-A) |
0.05~3ADC, resolution: 0.01A |
√ |
√ |
√ |
|
|
Current range (Type-C) |
0.05~5ADC, resolution: 0.01A |
√ |
√ |
||
|
Capacity |
0~99999mAh, resolution: 1mAh |
√ |
√ |
√ |
√ |
|
Energy |
0~1000Wh |
√ |
√ |
√ |
√ |
|
Circuit equivalent resistance measurement |
1~480Ω |
√ |
√ |
√ |
√ |
|
USB data cable voltage (D+, D-) |
0~3.3V |
√ |
√ |
√ |
√ |
|
Data storage |
10 sets |
√ |
√ |
√ |
√ |
|
Electrical load (UT658LOAD only) |
0.5A, 1A, 2A, 3A (Max power: 60W) |
√ |
|||
|
Maximum recording time |
99h, 59min, 59sec; resolution: 1s |
√ |
√ |
√ |
√ |
|
Fast charge protocol (Type-A) |
QC 3.0 fast charge protocol |
√ |
√ |
√ |
|
|
Fast charge protocol (Type-C) |
QC 4.0 fast charge protocol |
√ |
√ |
||
|
General Characteristics |
|||||
|
Product color |
White |
||||
|
Product net weight |
UT658A/C: 50.6g; UT658DUAL: 65.8g; UT658LOAD: 114.4g |
||||
|
Product size |
UT658A/C: 93mm x 45mm x 13mm; UT658DUAL: 93mm x 55mm x 13mm;UT658LOAD: 122mm x 53mm x 27mm |
||||
|
Standard individual packing |
Gift box, English manual |
||||
|
Standard quantity per carton |
60pcs |
||||
|
Standard carton measurement |
UT658A/C/DUAL: 280mm x 220mm x 225mm; UT658LOAD: 320mm x 300mm x 225mm |
||||
|
Standard carton gross weight |
UT658A/C: 4kg; UT658DUAL: 5.5kg; UT658LOAD: 9kg |
||||
Useful information
Specifications
Experimental product description generated by artificial intelligence
UNI-T USB Type A, Type C Tester
The UNI-T UT658A/C/DUAL/LOAD USB Tester is a versatile and precise tool designed for testing USB chargers, portable power sources, data cables, and other electronic charging devices. This device offers comprehensive testing capabilities, making it ideal for various applications, from manufacturing verification to DIY projects.
Key Features and Functions
- Measures: Output voltage, current, energy, capacity, circuit equivalent resistance, and D+/D- voltage of USB data cables.
- Supports: USB Type-A and Type-C ports, QC 3.0 and QC 4.0 fast charging protocols.
- Data Storage: Stores up to 10 sets of test data.
- Load Testing: Includes a built-in electrical load for testing USB power sources.
- User-Friendly Interface: Simple operation with clear display and intuitive buttons.
Why Choose This Product?
The UNI-T USB Tester provides accurate and reliable measurements, ensuring the quality and safety of your USB charging devices. Its compact and portable design makes it perfect for on-site testing and various applications. The inclusion of load testing capabilities adds to its versatility, making it a comprehensive solution for all your USB testing needs.
Main Parameters
| Parameter | Specification |
|---|---|
| Input Voltage Range | 4~24VDC |
| Type A Current Range | 0.05~3ADC |
| Type C Current Range | 0.05~5ADC |
| Capacity Measurement Range | 0~99999mAh |
| Energy Measurement Range | 0~1000Wh |
This UNI-T USB power tester, also known as a USB power analyzer or USB multimeter, is a must-have tool for anyone working with USB-powered devices.
