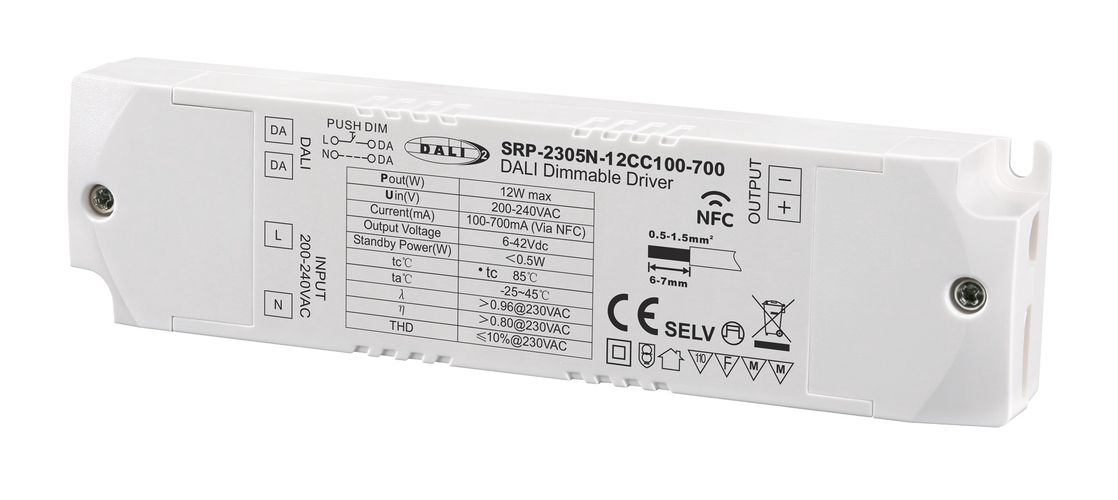

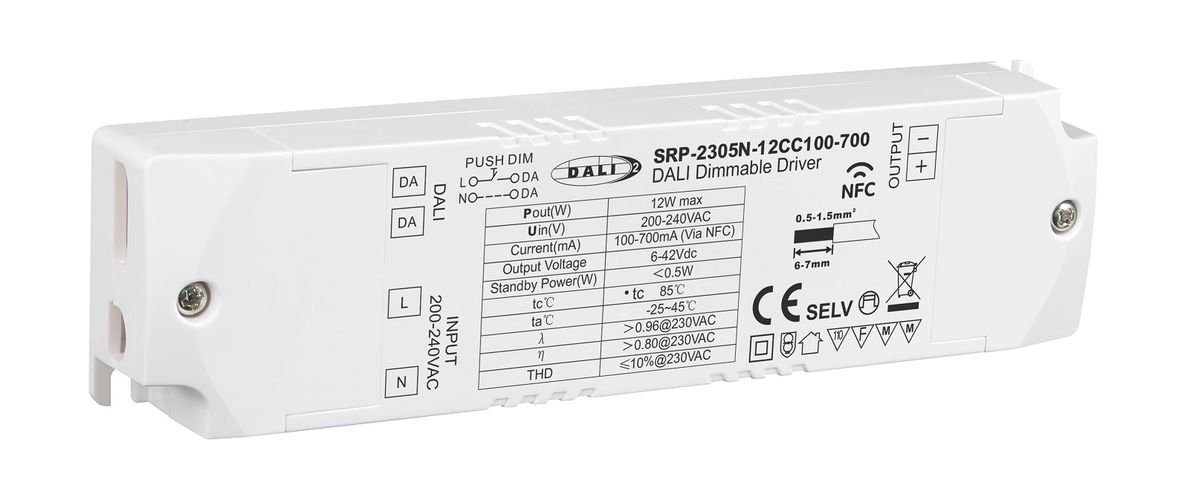

12W single output constant current LED power supply 6-42Vdc, 100-700mA, dimmable PUSH-DIM, DALI-2 with NFC setting, PFC, Sunricher
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Features
- Built-in DALI-2 interface, DALI DT6 device
- Dimmable LED driver. Max. output power 12W
- 100-700mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
- DALI Address/Group/Scene setting via NFC program tool.
- Class Ⅱ power supply, full isolated plastic case
- High power factor and efficiency
- To switch and dim LED lighting luminaries
- Amplitude/CCR dimming, smooth and deep dimming
- Compatible with universal DALI masters that support DT6 commands
- Error report function
- IP20 rating, suitable for indoor LED lighting applications
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
Download NFC program tool:
for Apple from App store
for Android from Google play
Technical data
| Output | LED Channel | 1 |
| DC Voltage | 6-42V | |
| Current | 100-700mA via NFC setting; Min.current gear lower to 0.1mA | |
| Current Accuracy | ±3%( ±1%@Certain full load) @ full load | |
| Rated Power | Max. 12W | |
| Input | Voltage Range | 200-240VAC/176-280VDC |
| Frequency Range | 0/50/60Hz | |
| Power Factor (Typ.) | > 0.96 @ 230VAC Full load | |
| Total Harmonic Distortion | THD ≤ 10% (@ full load / 230VAC) | |
| Efficiency (Typ.) | ＞80% @ 230VAC full load | |
| AC Current (Typ.) | 0.1A @ 230VAC | |
| Inrush Current (Typ.) | Max. 3.96A at 230VAC; 90μs duration | |
| Leakage Current | < 5mA /230VAC | |
| Standby Power Consumption | ＜0.5W | |
| Anti Surge | L-N:2KV | |
| Control | Dimming Interface | DALI Device Type 6 (DALI consumption < 2mA)/ AC Push |
| Dimming Range | 0.01%-100%@ Max current | |
| Dimming Method | Amplitude/CCR dimming | |
| Dimming Curve | Linear/ Logarithmic optional | |
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Over Current | Yes, recovers automatically after fault condition is removed | |
| Over Temperature | Yes, recovers automatically after temperature drop | |
| Environment | Working Temp. | -25℃ ~ +45℃ |
| Max. Case Temp. | TC=85℃ (Ta="45℃") | |
| Working Humidity | 10% ~ 95% RH non-condensing | |
| Storage Temp. & Humidity | -40℃ ~ +80℃, 10% ~ 95% RH | |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13 |
| Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH | |
| EMC Emission | En55015, EN61000-3-2, EN61000-3-3 | |
| EMC Immunity | En61547, EN61000-4-2,3,4,5,6,8,11 | |
| Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load |
| Dimension | 135mm x 35mm x 20mm |
Useful information
Specifications
Experimental product description generated by artificial intelligence
12W Single Output Constant Current LED Power Supply
This 12W LED driver from Sunricher is a high-performance, dimmable constant current power supply designed for use in DALI lighting systems. It offers a wide range of features and benefits, making it an ideal choice for various LED lighting applications.
Key Features and Benefits
- DALI-2 and PUSH-DIM compatible: Offers flexible control options, allowing integration with DALI lighting control systems and simple push-button dimming.
- NFC Setting: Easy parameter configuration via NFC, simplifying installation and setup.
- Constant Current Output: Ensures consistent and reliable performance for your LED lights.
- High Power Factor (PFC): Improves energy efficiency and reduces power consumption.
- Wide Voltage Range: Compatible with various input voltages, offering greater flexibility.
- Dimmable: Allows for smooth and precise dimming control of your LED lights.
- 5-Year Warranty: Provides peace of mind and demonstrates Sunricher's confidence in the product's quality.
Applications
This versatile LED driver is suitable for a wide range of indoor LED lighting applications, including:
- Commercial lighting
- Residential lighting
- Industrial lighting
Why Choose This Product?
The Sunricher 12W DALI DT6 NFC Enabled LED Driver offers a combination of advanced features, ease of use, and reliability. Its compatibility with DALI-2 and NFC simplifies installation and configuration, while its high efficiency and wide voltage range make it a versatile solution for various LED lighting projects. The 5-year warranty provides additional assurance of its quality and longevity.
Technical Specifications
| Parameter | Value |
|---|---|
| Output Power | 12W |
| Output Current | 100-700mA (adjustable via NFC) |
| Input Voltage | 6-42Vdc |
| Dimming Method | PUSH-DIM, DALI-2 |
| Protection | Short Circuit, Over Current, Over Temperature |
Note: For detailed specifications, please refer to the product datasheet.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
