Product description

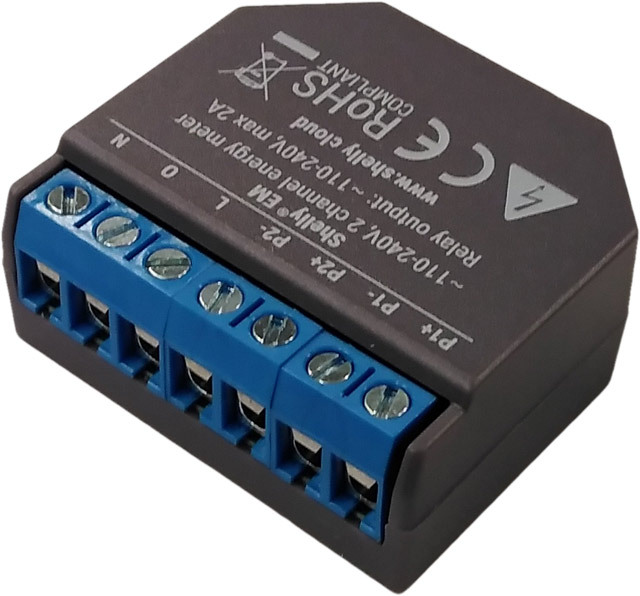

Shelly EM
Opens image in full screenOpen
Downloads
Manuals
Compliance
Shelly EM multilingual EU declaration of conformity.pdf
Shelly EM + 50A UK PSTI ACT Statement of compliance.pdf
What is Shelly EM?
365 day built-in energy history
We developed Shelly ЕМ to allow you to monitor the status and history, as well as the current and past electrical power consumption for the day, week, month or year.
Features
-
No HUB required.
-
Internal temperature sensor for overheating protection.
-
Shelly EM can automatically turn off the whole circuit if consumption or energy (prepaid energy option) reaches the set limit.
-
Designed to fit in most standard electrical boxes and switches.
-
It can be integrated to work with all other Shelly devices.
-
Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.
-
Easily make your Arduino project live and usable in your automation project.
Specification
Enlarges the table by opening it in a full screen dialogOpen
POWER |
|
Power supply AC |
110-230V, 50/60Hz |
Power supply DC |
No |
SPECIAL FUNCTIONS |
|
Contactor Control |
Yes – max 2A |
Roller shutter mode |
No |
Device temperature protection |
Yes |
Overload protection |
No |
Power measurement |
Yes |
FEATURES |
|
Channels |
2 Channel (Single phase) |
Operational temperature |
0 to + 40 °C |
Device power consumption |
< 1 W |
Intelligent On/Off |
Yes |
Local and remote control |
Yes |
Sunrise/Sunset |
Yes |
Weekly Schedule |
Yes |
UL Listed option |
No |
CONNECTIVITY |
|
RF band: |
2412 - 2495 MHz |
Max. RF power: |
<20 dBm |
Wi-Fi protocol: |
802.11 b/g/n |
Wi-Fi Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
DIMENSIONS |
|
Size |
39mm x 36mm x 17 mm |

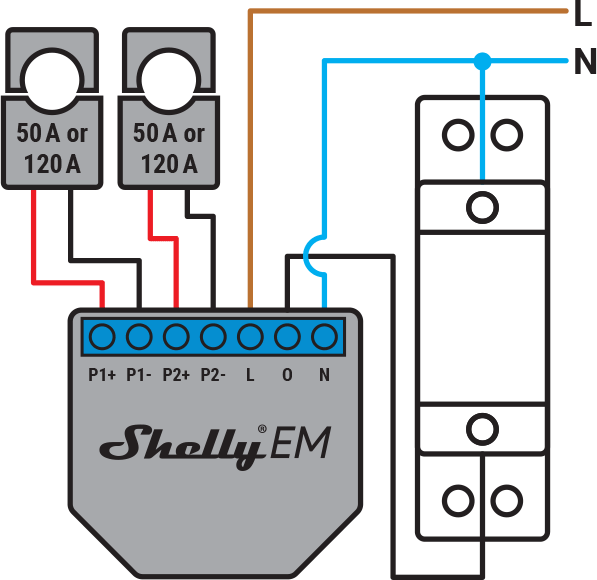

Wiring diagrams
Opens image in full screenOpen
