INSTALLATION GUIDE

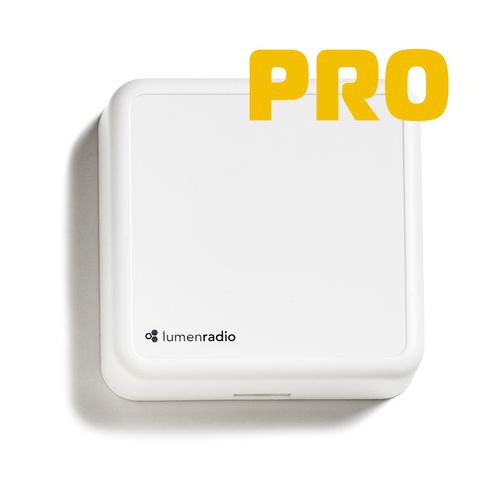

W-BACnet wall mount PRO

The W-BACnet solution eliminates the need to run control cables for BACnet MS/TP installations significantly reducing time-consuming cable installations, installation planning, troubleshooting, and daisy-chaining.

FEATURES

• Scalability – Connect up to 4 BACnet Clients to one W-BACnet PRO.
• BACnet compatibility – Compatible with all BACnet MS/TP devices.
• Instant commissioning – 3 simple steps, commissioning the W-BACnet network in minutes.
• Mesh network – cover an entire building, utilizing the mesh network as your infrastructure.
• Range – 500 meters (line-of-sight) per hop in the mesh network.
• Cognitive Coexistence – LumenRadio’s patented technology provides industrial-grade reliability and immunity to interference.
• Self-optimizing network – the mesh network will always find the best way to send messages through the network between devices.
• Modular configuration – you no longer need to have the same baud rate in the whole network, supports individual settings for each device.

SPECIFICATIONS

• Power supply: 24 VAC ±15% 50-60 Hz, 24 VDC ±15%
• Max. power consumption: 2.5 W
• 24 V output max. power: 10 W
• Auto resettable fuse: Yes
• Cable rating, connector: solid / stranded 0.14 – 0.5 mm2 / 0.2 – 0.5 mm2
• Conductor sizes (AWG) 24 – 20
• Frequency band: 2.45 GHz, ISM band (2400-2483 MHz)
• Baud rate: 9600, 19200, 38400, 76800 bps
• Stop bit: 1, 2
• Parity: none, even
• Number of Servers: 4 Servers to one W-Modbus PRO
• Number of hops: 8 hops in the meshing network
• Range per hop: 500 m line of sight (approximately 50- 70 m indoors with walls)
• Output (ERP): Max 20 dBm
• IP class: 40
• Material: ABS UL94-V0
• Colour: White, RAL 9003
• Ambient temperature: Operating: -20 to +55°C
• Storage: -30 to +80°C
• RH: 10 – 95% non-condensing
• Weight: 95g
• Dimensions: W86.0 x H86.0 x D25.5 mm

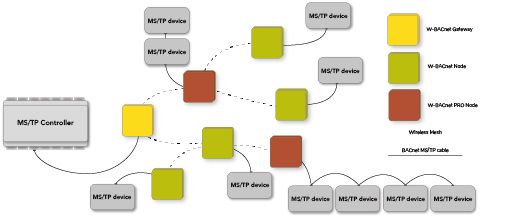

SYSTEM OVERVIEW

A W-BACnet network consists of a single W-BACnet Gateway with up to 100 W-BACnet Nodes.

The W-BACnet PRO nodes can be connected to one to four Bacnet MS/ TP devices over a BACnet MS/TP cable compared to a normal W-BACnet node that can connect to one MS/TP device over BACnet MS/TP cable.
