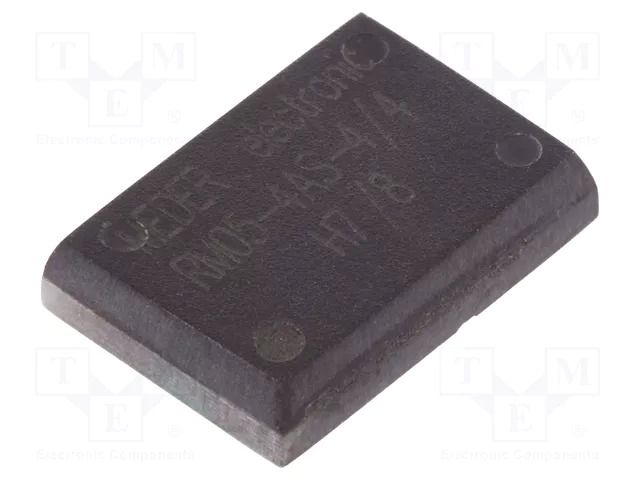

Relay: reed switch; SPST-NO x4; Ucoil: 5VDC; 500mA; max.170VDC MEDER
Product Code: RM05-4AS-4/4
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Relay: reed switch; SPST-NO x4; Ucoil: 5VDC; 500mA; max.170VDC
Useful information
Supplier parameters
NomNr
RM05-4AS-4/4
Brand
MEDER
Supplier's product code
RM05-4AS-4/4
Product ID
U-311847
Body dimensions
16x11.2x4mm
Coil power consumption
135mW
Coil resistance
185Ω
Contact current max.
0.5A
Contact resistance
0.2Ω
Contacts configuration
SPST-NO x4
Manufacturer
MEDER
Min. insulation resistance
10GΩ
Mounting
SMD
Operate time
0.6ms
Operating temperature
-40...85°C
Rated coil voltage
5V DC
Release time
0.1ms
Switched voltage
max. 170V AC
Switching capacity
10W
Type of relay
reed switch
