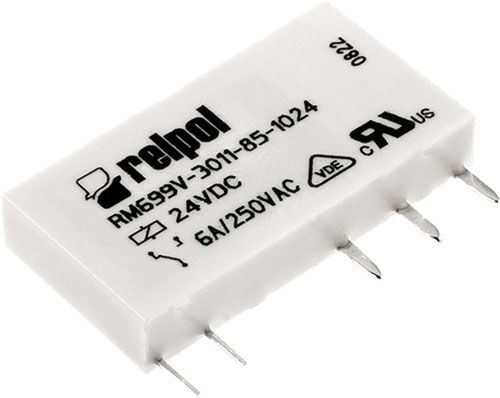

Relay:electromagnetic;SPDT;Ucoil:24VDC;6A/250VAC;6A/24VDC;6A
Product Code: RE-RM699V-P-24
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Other products in this category
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; 6A; 6A/250VAC; 6A/24VDC
Supplier parameters
AC contacts rating @R
6A / 250V AC
Body dimensions
28x5x15mm
Coil power consumption
170mW
Coil resistance
3.39kΩ
Coil voltage max.
36V DC
Coil voltage min.
18V DC
Contact current max.
6A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
6A / 24V DC
IP rating
IP64
Manufacturer
RELPOL
Mounting
vertical
OEM number
2613666
Operate time
8ms
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay series
RM699B
Relay variant
interface
Related items
PI6W-1P
Release time
4ms
Switched voltage
max. 24V DC
Terminal pitch
5mm
Type of relay
electromagnetic
