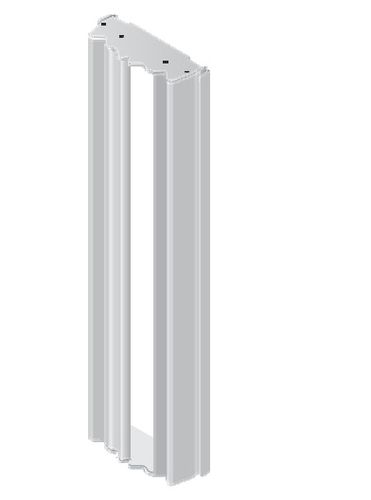

Ubiquiti AM-5AC22-45 | Sector antenna | airMAX, 5GHz, 22dBi, UBIQUITI
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Specifications
Supplier product description
Breakthrough design and performance
The airMAX ac sector antenna features an innovative deflector design and 2x2 bipolar performance for the airMAX network. The ubiquiti antenna works on 5GHz frequency which allows for fast communication.
Interference resistance
The airMAX ac sector antennas have reduced side bars so that they eliminate interference.
High transmission efficiency
Compare the airMAX ac sector antenna diagram, model AM-5AC22-45, with the standard sector antenna diagram and pay attention to the excellent interference resistance and transmission performance.
Rugged construction
The airMAX ac antennas are designed with a robust mechanical construction for outdoor use.
Plug and Play integration
Each ubiquiti airMAX ac sector antenna has a built-in Rocket handle, so no tools are needed to install the Rocket BaseStation.
| Antenna frequency | 5 GHz |
| Antenna type | Sector |
| Energy gain | 21dBi - 30dBi |
| Antenna gain level (max) | 22 |
| Application | Outdoor |
| Compatible with brand | Ubiquiti |
| Connector type | 2x RP-SMA |
| Cross polarization isolation | >30 dB |
| Depth | 78 |
| Electric deviation | 2° |
| Frequency band | 5.1 - 5.8 |
| Harmonized System (HS) code | 85177100 |
| Height | 750 |
| Horizontal beam width | 45 |
| Horizontal beamwidth | 45° |
| Mounting | Wall |
| Polarization | Double linear |
| Polarization | Dual polarization |
| Product colour | White |
| Quantity per pack | 1 |
| Vertical beam width | 45 |
| Vertical beamwidth | 45° |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| VSWR | 1.5:1 |
| Weight | 4.8 |
| Width | 173 |
