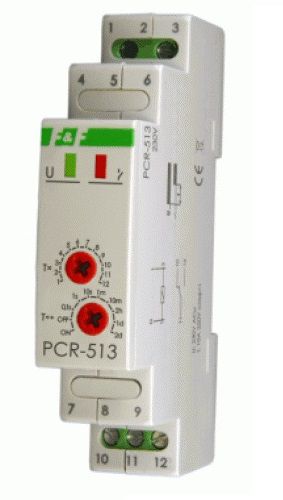

Timer 0,1s-24d SPDT 10A DIN F&F RoHS
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Supply voltage 12...264V DC, 12...264V AC; operation status indication - LED diodes; -25÷50°C
Product description
Timing relays are devised to time the control of industrial and domestic automatic control engineering systems (e.g. ventilation, heating, lighting, signalling, etc.).
Operation mode: Lagged activation.
Functioning
After the power voltage is supplied, the contact remains in position 11-10 and the timing of the preset value t is commenced. After the preset time t has been counted down, the contact is shifted to position 11-12. The working sequence of the relay may be repeated after turning the power supply off and on.
Attention!
* Setting the time range knob regulator in the:
ON - position with power supply activated results in the permanent closure of the contact in position 11-12.
OFF - position (power supply activated) causes the contact to be permanently closed in the 11-10 position.
* With the power supply on, the system does not respond to time range setting modifications.
* The newly set time range is active after the power supply has been turned off and on.
* With the power supply on, it is possible to regulate the preset time freely within the selected time range.
