Product Specifications of UTi120M
Thermal camera 120x90, -20℃~400℃, 50º*38º, 25Hz; Android,UNI-T
Product Code: UTi120M
New
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

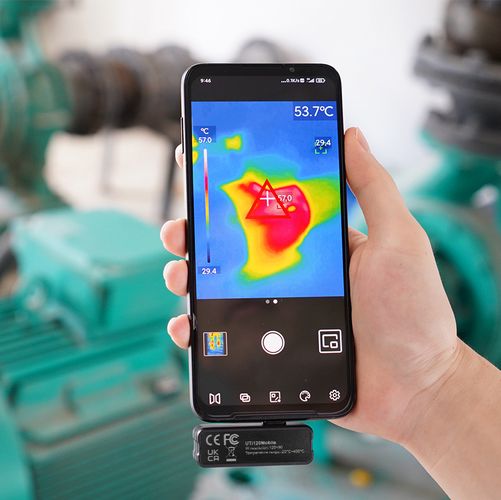

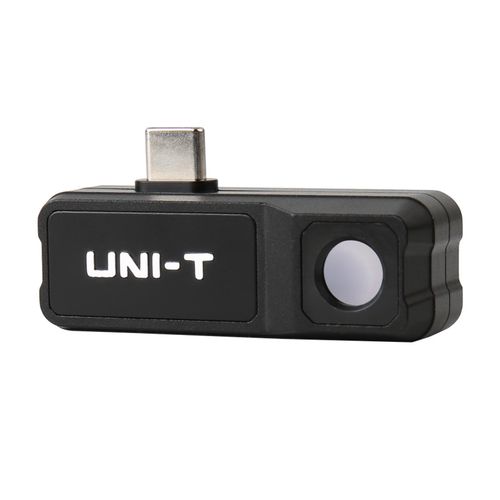

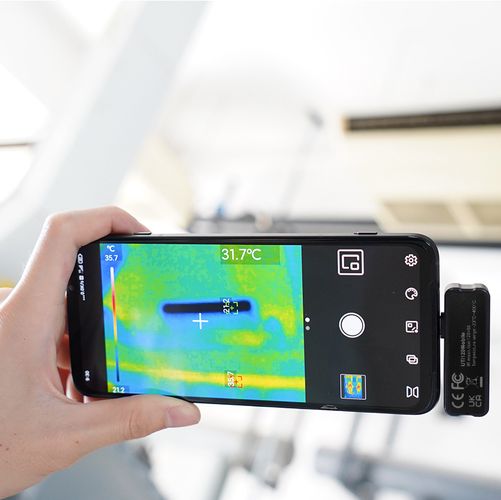

UTi120M is a professional smartphone thermal camera module for Android, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120M rovides clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.
| Technical Data | |
| IR resolution (Pixels) | 120×90 |
| Field of view(FOV) | 50°×38° |
| Thermal sensitivity(NETD) | ≤60mK @25℃ |
| Spatial resolution(IFOV) | 7.3mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus free |
| Lens focal length | 2.28mm |
| Temperature measurement range | -20℃ ~ 400℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |

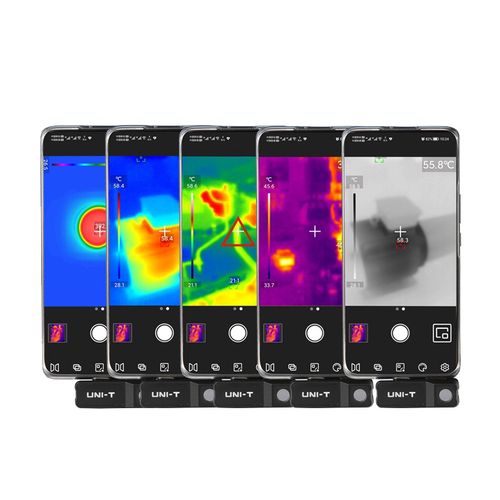

| Color palettes | 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC) |
| Image modes | Thermal,Fusion,PIP |
| On screen analyzer | 6 Points/6 Lines/6 Rectangles/6 Circles |
| Hi/Lo temperature alarm | √ |
| Video recording | √ |
| General Characteristics | |
| USB | Type-C |
| Drop proof | 2m |
| Image/Video storage format | JPEG, MP4 |
| Certificates | CE,UKCA,FCC,RoHS |
| Product net weight | 25g |
| Product size | 53mm×18.2mm×18.5mm |
| Packing Details | |
| Standard accessories | Micro USB adapter, USB cable, English manual, Documents download operation guide card |
| Standard individual packing | Gift box |
| Standard Qty per carton | 20pcs |
| Standard carton size | 290mm×265mm×325mm |
| Standard carton G.W. | 4.8kg |
Useful information
Specifications
Description generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligence
Experimental product description generated by artificial intelligence
UNI-T Thermal Imaging Camera: Precise Temperature Measurement
This UNI-T Thermal Camera, a high-quality infrared camera, offers precise temperature readings for various applications. Its robust design and advanced features make it a reliable tool for professionals and enthusiasts alike.
Key Features and Specifications
- Brand: UNI-T
- Resolution: 120x90 pixels
- Temperature Range: -20℃ to 400℃
- Field of View: 50º x 38º
- Refresh Rate: 25Hz
- Operating System: Android
Applications
This thermal imager is versatile and suitable for a wide range of uses, including:
- Building inspections (detecting heat loss)
- Electrical maintenance (identifying overheating components)
- Industrial applications (monitoring equipment temperature)
- Research and development
Why Choose This Thermal Camera?
The UNI-T Thermal Camera provides superior performance and value. Its high resolution, wide temperature range, and fast refresh rate ensure accurate and detailed thermal images. The Android operating system offers user-friendly operation and data management. This makes it an ideal choice for professionals and hobbyists needing a reliable and accurate thermal imaging solution.
Technical Details
| Parameter | Value |
|---|---|
| Model | Thermal camera 120x90, -20℃~400℃, 50º*38º, 25Hz |
| Infrared Resolution | 120x90 |
| Temperature Range | -20℃~400℃ |
| Field of View | 50º*38º |
| Refresh Rate | 25Hz |
Invest in the UNI-T Thermal Camera for accurate and reliable temperature measurement.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
