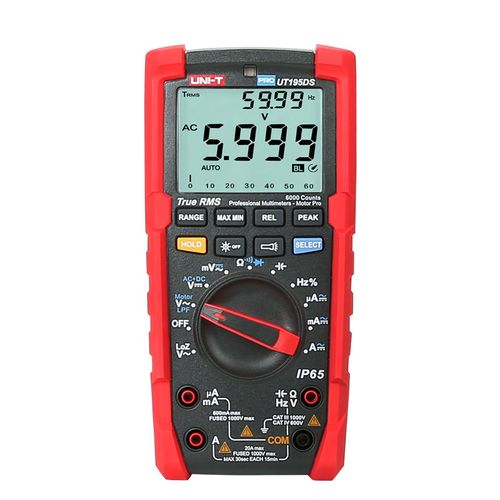

Profesional multimeter UT195DS UNI-T
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
The UT195 series offers industrial digital multimeters that are IP65-rated and 2m drop-proof, ideal for harsh environments like mines and oilfields. Designed for tasks such as motor diagnostics, equipment maintenance, and electrical repairs, these multimeters combine ruggedness with user-friendly operation.
Features:
● True RMS measurement
● IP65 & 2m drop protection
● 3-phase sequence test (UT195M/UT195DS)
● MAX/MIN/Data hold mode
● LPF ACV function (UT195DS)
● APO/Flashlight/Auto backlight
Comparison of UT195 models
| Specifications | Range | UT195E | UT195M | UT195DS |
| DC voltage (V) | 1000V | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
| AC+DC | 750V | ±(0.7%+3) | ±(0.7%+3) | ±(0.7%+3) |
| AC voltage (V) | 600V | ±(1.5%+4) | ||
| LoZ ACV | 600V | ±(2%+3) | ±(2%+3) | ±(2%+3) |
| DC current (A) | 20A | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
| AC current (A) | 20A | ±(1%+3) | ±(1%+3) | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance | 60mF | ±(3%+5) | ±(3%+5) | ±(3%+5) |
| Frequency | 60Hz~10MHz | ±(0.1%+4) | ||
| 60Hz~40MHz | ±(0.1%+4) | ±(0.1%+4) | ||
| Duty cycle | 0.1%~99.9% | ±(2%+5) | N/A | ±(2%+5) |
| Temperature (°C) | -40°C~1000°C | ±(1.5%+4) | ||
| Temperature (°F) | -40°F~1832°F | ±(2%+5) | ||
| Features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Display interface (LCD) | Single | Single | Dual | |
| Measurement sampling rate | times/s | 3 | 3 | 5 |
| Analog bar sampling rate | times/s | 10 | 20 | |
| Analog bar | 31 sections | √ | √ | |
| True RMS | √ | √ | √ | |
| AC voltage frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| AC current frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| 3-phase motor sequence test | 600V | √ | √ | |
| Low pass filter | 1kHz 3dB attenuation | √ | ||
| Diode/Continuity test | 3.5V | 3V | 3V | |
| Peak hold | 250μs | √ | ||
| Auto/Manual range | √ | |||
| Continuity buzzer | √ | |||
| Low battery indication | √ | |||
| Data hold/Auto power off | √ | |||
| MAX/MIN | √ | |||
| Function selection | √ | |||
| Flashlight/Auto backlight | √ | |||
| General Characteristics | ||||
| Power | 9V battery | |||
| LCD size | 66mm x 51mm | |||
| Product color | Red and grey | |||
| Product net weight | 437g | |||
| Product size | 195mm x 95 mm x 58mm | |||
| Standard accessories | Test probes, battery, carrying bag, point contact temperature probe (UT195M) | |||
| Standard individual packing | Gift box, English manual | |||
| Standard quantity per carton | 6pcs | |||
| Standard carton measurement | 580mm x 375mm x 215mm | |||
| Standard carton gross weight | 7.2kg | |||
Useful information
Specifications
Experimental product description generated by artificial intelligence
The UNI-T UT195DS Professional Multimeter is a reliable, safe, and durable hand-held industrial grade digital multimeter. It is designed with IP65 rating and 2 meter drop proof. It is a multimeter of 3 5/6 digit true RMS with large multiple display screen and auto ranged. It can measure AC/DC voltage or current, resistance, diode, circuit continuity, capacitance, frequency, duty ratio, temperature, and motor phase voltage. This multimeter is German GS certified.
Key Features:
- IP65 rating and 2 meter drop proof
- 3 5/6 digit true RMS
- Large multiple display screen
- Auto ranged
- Measures AC/DC voltage or current, resistance, diode, circuit continuity, capacitance, frequency, duty ratio, temperature, and motor phase voltage
- German GS certified
Why Choose the UNI-T UT195DS?
- Highly reliable, safe, and durable
- Full function measurement error protection
- True Root Mean Square (TRMS) AC voltage and current
- AC+DC measurement mode
- AC voltage peak capture
- LOW PASS FILITER guarantees precise measurement of voltage and frequency of variable speed drivers
- MOTOR TEST three phase rotation test
- LoZ voltage measurement
- Resistance, continuity and diode test voltage
- Capacitance range is 60.00mF
- Capture MAX/MIN, mean, and peak values
- Relative REL mode
- Manual and auto select range
- Auto backlight function
- Long battery life
The UNI-T UT195DS Professional Multimeter is a great choice for anyone who needs a reliable and accurate multimeter for a variety of applications. It is perfect for use in industrial, commercial, and residential settings.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
