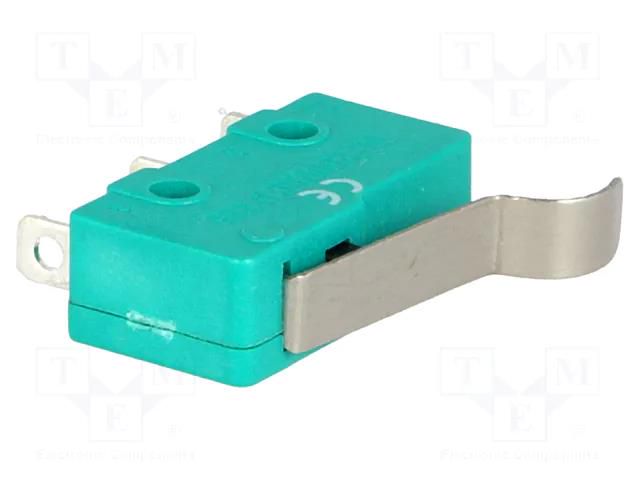

Microswitch SNAP ACTION; 5A/250VAC; SPDT; Rcont max: 30mΩ; Pos: 2
Product Code: WLK-5MINI
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Microswitch SNAP ACTION; 5A/250VAC; SPDT; Rcont max: 30mΩ; Pos: 2
Specifications
SKU
U-383985
Product code
WLK-5MINI
Supplier product description
Microswitch SNAP ACTION; 5A/250VAC; SPDT; Rcont max: 30mΩ; Pos: 2
Supplier parameters
NomNr
WLK-5MINI
Supplier's product code
WLK-5MINI
Product ID
U-383985
AC contacts rating @R
5A / 250V AC
Body dimensions
19.8x6.4x10.6mm
Contacts configuration
SPDT
Electrical life
30000 cycles
IP rating
IP40
Leads
for soldering
Lever length
17mm
Max. contact resistance
:30mΩ
Min. insulation resistance
0.1GΩ
Number of positions
2
Operating Force
1.5N
Operating temperature
-25...65°C
Stable positions number
1
Switches features
with lever with roller simulation
Switching method
ON-(ON)
Terminal pitch
7.3mm
Type of switch
microswitch SNAP ACTION
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
