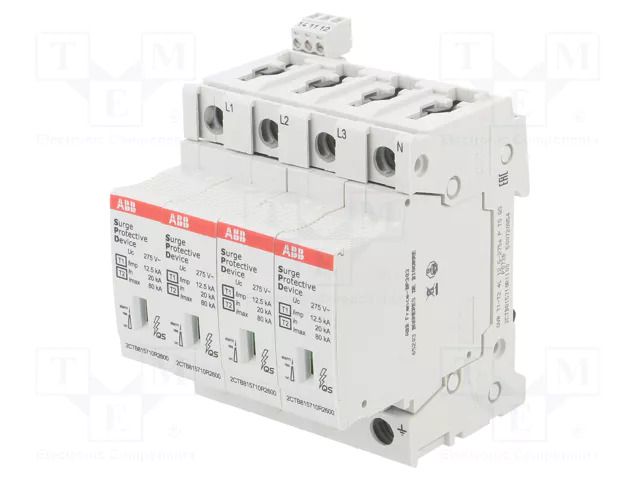

Surge arrester; Type 1+2; Poles: 4; In 8/20us: 80kA; -40÷80°C; IP20 ABB
Product Code: 2CTB815710R1100
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Surge arrester; Type 1+2; Poles: 4; In 8/20us: 80kA; -40÷80°C; IP20
Useful information
Supplier parameters
Product code
2CTB815710R1100
Integrated auxiliary contacts
NO + NC
IP rating
IP20
Kind of network
TN-S
Kind of surge arrester
Type 1+2
Manufacturer
ABB
Max. operating voltage
275V AC
Mounting
for DIN rail mounting
Number of poles
4
Operating temperature
-40...80°C
Protection level at rated imp. current
1.5kV
Rated impulse current In (10/350)µs
12.5kA
Rated impulse current In (8/20)µs
80kA
Rated voltage
230/400V AC
Surge arresters features
fitted with mechanical indicators of each arrester operation
Type of protection
surge arrester
Brand
ABB
Supplier's product code
2CTB815710R1100
Product ID
U-2706923
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
