Features of UT60 Series Digital Multimeters

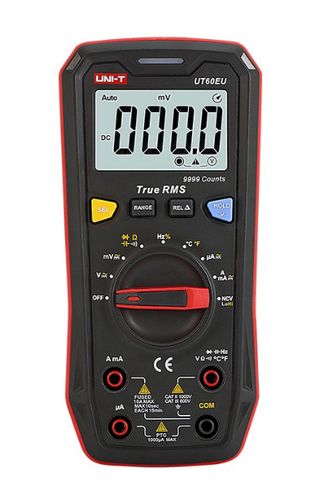

Digital Multimeter UT60EU, CAT II 1000V/CAT III 600V, TRMS
Product Code: UT60EU
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
UT60 Series Digital Multimeters
UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places. This CE certified meter meets CAT II 1000V/CAT III 600V safety rating with rugged double-injection housing.
Models in the UT60 Series: UT60EU, UT60BT, UT60S
Certificates: CE, UKCA, cETLus
● 9999 counts
● True RMS
● Bluetooth
● Duty cycle
● Diode/Continuity test
● Temperature
● Non-contact voltage
● Analog bar/Data hold
● Backlight/Relative mode
● Auto/Manual range
● Low battery indication
● Three-color LED light indicator
Specifications of UT60 Series Digital Multimeters
|
Specification |
Range |
UT60EU |
UT60BT |
UT60S |
|
DC Voltage |
9.999mV/99.99mV/999.9mV/ |
±(0.5%+3) |
±(0.5%+3) |
±(0.5%+3) |
|
AC Voltage |
9.999mV/99.99mV/999.9mV/ |
±(0.8%+3) |
±(0.8%+3) |
±(0.8%+3) |
|
DC Current |
999.9uA/999.9mA/9.999A/10A |
±(0.8%+3) |
±(0.8%+3) |
±(0.8%+3) |
|
AC Current |
999.9uA/999.9mA/9.999A/10A |
±(1.0%+3) |
±(1.0%+3) |
±(1.0%+3) |
|
Resistance |
999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ |
±(0.8%+2) |
±(0.8%+2) |
±(0.8%+2) |
|
Capacitor |
9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/9.99mF (UT60EU/UT60BT)/99.9mF(UT60S) |
±(4.0%+5) |
±(4.0%+5) |
±(4.0%+5) |
|
Frequency |
99.99Hz～9.999MHz |
±(0.1%+5) |
±(0.1%+5) |
±(0.1%+5) |
|
Duty Cycle |
0.1～99.9% |
±(3%+5) |
±(3%+5) |
±(3%+5) |
|
Temperatue |
–40℃～1000℃/–40°F～1832°F |
±4℃/±5℉ |
±4℃/±5℉ |
±4℃/±5℉ |
|
Features |
||||
|
Bluetooth |
√ |
|||
|
Display Count |
9999 |
9999 |
9999 |
|
|
Auto Range |
√ |
√ |
√ |
|
|
REL |
√ |
√ |
√ |
|
|
NCV |
√ |
√ |
√ |
|
|
Diode |
√ |
√ |
√ |
|
|
Continuity Test |
√ |
√ |
√ |
|
|
Acousto-optic Indication (NCV/continuity/battery power) |
√ |
√ |
√ |
|
|
Low Battery Indication |
≤3.6V |
√ |
√ |
√ |
|
Data Hold |
√ |
√ |
√ |
|
|
Auto Power Off |
15Min |
√ |
√ |
√ |
|
Operation Temperature |
0℃～40℃ |
|||
|
Safety |
CAT II 1000V/CAT III 600V |
|||
|
General Characteristics |
||||
|
Battery |
1.5V AAA x 3 |
|||
|
Product Color |
Red and Gray |
|||
|
Product Net Weight |
290g |
|||
|
Product Size |
169mm x 81mm x 46mm |
|||
|
Standard Individual Packing |
Gift Box, Manual, Thermocouple |
|||
|
Standard Quantity Per Carton |
20pcs |
|||
|
Standard Carton Size |
420mm x 320mm x 300mm |
|||
Specifications
Description generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligence
Experimental product description generated by artificial intelligence
UNI-T UT60EU Digital Multimeter: A Reliable and Versatile Measuring Tool
The UNI-T UT60EU is a professional-grade digital multimeter ideal for various applications. This robust and accurate device is a valuable asset for electricians, technicians, and hobbyists alike.
Key Features and Benefits
- CAT II 1000V/CAT III 600V safety rating: Ensures safe operation in a wide range of environments.
- TRMS measurement: Provides accurate readings even with non-sinusoidal waveforms.
- Multiple measurement functions: Offers comprehensive capabilities for various electrical parameters.
- Durable and reliable construction: Built to withstand the rigors of daily use.
- User-friendly design: Easy to operate and interpret results.
Applications
The UT60EU digital multimeter is suitable for a wide array of tasks, including:
- Electrical troubleshooting and diagnostics
- Industrial maintenance and repair
- Automotive diagnostics
- HVAC/R system testing
- Electronics repair and testing
Why Choose the UNI-T UT60EU?
The UNI-T UT60EU stands out due to its combination of safety, accuracy, and versatility. Its high safety rating, TRMS measurement capability, and comprehensive functionality make it a superior choice for professionals and serious hobbyists who demand reliable performance. This digital multimeter offers excellent value for its price, providing a robust and accurate solution for your measurement needs.
Product Specifications
For detailed specifications, please refer to the product manual.
| Parameter | Value |
|---|---|
| Safety Rating | CAT II 1000V/CAT III 600V |
| Measurement Type | TRMS |
