SMD tester, 30MΩ; 30mF; Diode test: 3V; LED test: 21V/1mA; Continuity test: <30Ω; DC V: 36V;
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

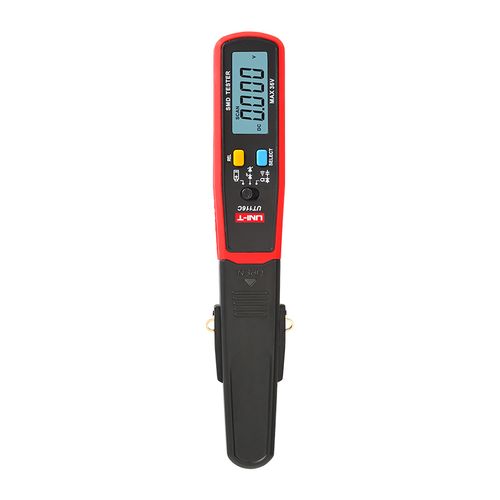

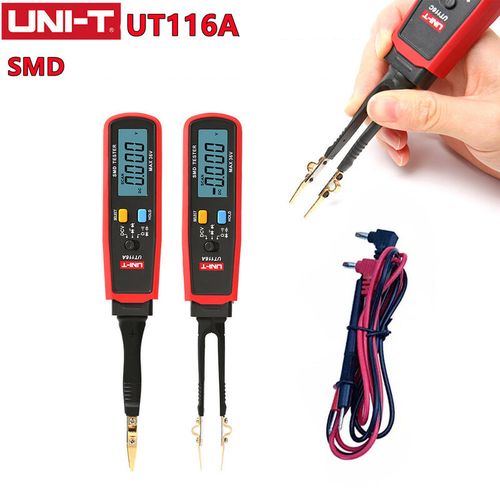

UT116 Series SMD Testers
UT116 series SMD tester is a miniaturized and integrated utility model measuring instrument, which can automatically identify components such as resistance, capacitance, diode, etc., with LED, voltage regulator, DCV, on-off and battery power measurement functions. SMD resistance, capacitance, diode (RCD) parameter measurement, is a good helper for electronics factories and electronics maintenance.
Models in UT116 Series: UT116A, UT116C
Features of UT116 Series SMD Testers
Certifications: CE, UKCA
● 36V DC voltage measurement
● Battery measurement (10mA) (UT116C)
● Zener diode polarity test
● Resistance, capacitance (UT116C: up to 100mF), continuity, diode measurement
● The pen can be rotated by 180, which is convenient for reading and diode/LED
Specifications of UT116 Series SMD Testers
|
Specifications |
UT116A |
UT116C |
|
Display count |
3000 |
6000 |
|
Resistance |
30MΩ |
60MΩ |
|
Capacitance |
30mF |
100mF |
|
Diode test |
3V |
3.2V |
|
LED/stabilivolt |
About 21V/1mA |
About 21V/1mA |
|
Continuity test |
＜30Ω |
＜50Ω |
|
DCV |
36V |
|
|
Battery test |
Load current ≈ 10mA |
|
|
Auto range |
√ |
√ |
|
Auto scan identification |
√ |
|
|
Auto power off |
√ |
√ |
|
General Characteristics |
||
|
Power |
1.5V battery (R03) x 2 |
|
|
Display |
39mm x 20mm |
|
|
Product color |
Red and grey |
|
|
Product net weight |
About 80g |
|
|
Product size |
204mm x 33mm x 25mm |
|
|
Standard accessories |
Battery |
|
|
Standard individual packing |
Gift box, English manual |
|
|
Standard quantity per carton |
60pcs |
|
|
Standard carton measurement |
440mm x 420mm x 210mm |
|
|
Standard carton gross weight |
About 7.1kg |
|
Useful information
Specifications
Experimental product description generated by artificial intelligence
UNI-T SMD Tester: Precise Component Testing
The UNI-T SMD tester is a reliable and versatile tool for electronics professionals and hobbyists alike. Categorized under Indicators, Voltage and Continuity Testers, this device offers precise measurements for various components.
Key Features and Functions:
- SMD Component Testing: Designed for efficient testing of surface mount devices.
- Resistance Measurement: Measures resistance up to 30MΩ.
- Capacitance Measurement: Measures capacitance up to 30mF.
- Diode Testing: Tests diodes with a 3V test voltage.
- LED Testing: Tests LEDs with a 21V/1mA test current and voltage.
- Continuity Testing: Checks continuity with a threshold of <30Ω.
- DC Voltage Measurement: Measures DC voltage up to 36V.
Why Choose the UNI-T SMD Tester?
This compact and easy-to-use tester provides accurate readings, making it ideal for various applications. Its comprehensive testing capabilities ensure thorough component verification, saving you time and effort. The UNI-T brand is synonymous with quality and reliability, ensuring a long-lasting and dependable tool for your workbench.
Applications:
This versatile tester is suitable for a wide range of applications, including:
- Testing SMD components on circuit boards
- Troubleshooting electronic circuits
- Verifying component functionality
- Quality control in electronics manufacturing
Specifications:
| Parameter | Value |
|---|---|
| Maximum Resistance | 30MΩ |
| Maximum Capacitance | 30mF |
| Diode Test Voltage | 3V |
| LED Test Voltage/Current | 21V/1mA |
| Continuity Threshold | <30Ω |
| Maximum DC Voltage | 36V |
Order your UNI-T SMD tester today and experience the difference!
