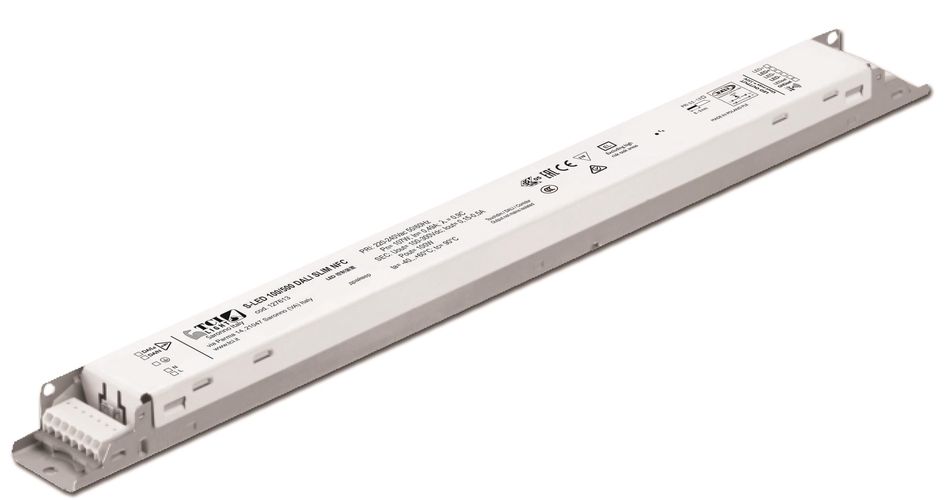

S-LED 100/500 DALI SLIM NFC - LED Driver, TCI

Approvals

CCC; CE; EAC ; ENEC; RCM; UKCA

Case

for Built-in; Slim

Constant current

150 mA; 155 mA; 160 mA; 167 mA; 170 mA; 175 mA; 180 mA; 184 mA; 185 mA; 190 mA; 200 mA; 210 mA; 215 mA; 217 mA; 220 mA; 225 mA; 230 mA; 234 mA; 240 mA; 245 mA; 250 mA; 260 mA; 267 mA; 270 mA; 275 mA; 280 mA; 284 mA; 290 mA; 300 mA; 305 mA; 310 mA; 317 mA; 320 mA; 325 mA; 330 mA; 334 mA; 335 mA; 340 mA; 350 mA; 360 mA; 370 mA; 375 mA; 380 mA; 390 mA; 400 mA; 410 mA; 420 mA; 425 mA; 430 mA; 440 mA; 450 mA; 460 mA; 470 mA; 475 mA; 480 mA; 485 mA; 490 mA; 500 mA; AOC via cables (ADJ. OUT. CURRENT); LEDset / RESISTOR; NFC programming

Depth

30

Dimming

BILEVEL Function; CLO Function; DALI-2 (also DALI-1); DC EMERGENCY Function; PUSH (on the Mains)

Height

21

Others

ACTIVE PFC (pf>0.9); DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-War; RIPPLE FREE

Width

360

NomNr

127613

Brand

TCI

Supplier's product code

127613

Product ID

U-3105532
