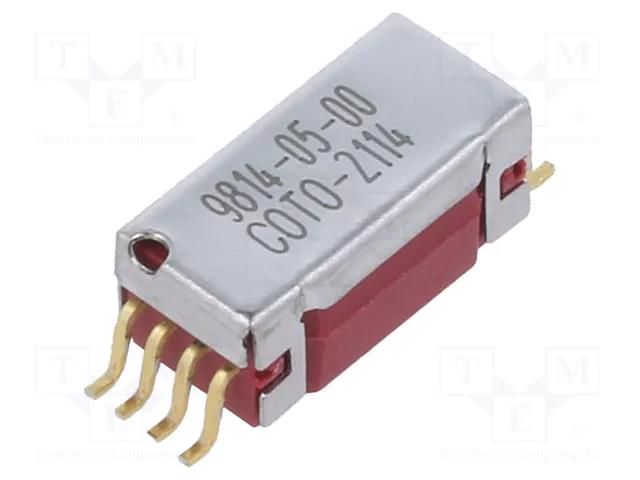

Relay: reed switch; SPST-NO; Ucoil: 5VDC; 0.5A; max.100VDC; 3W; SMT COTO TECHNOLOGY
Product Code: 9814-05-00TR
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Brand
Relay: reed switch; SPST-NO; Ucoil: 5VDC; 0.5A; max.100VDC; 3W; SMT COTO TECHNOLOGY
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 5VDC; 0.5A; max.100VDC; 3W; SMT
Useful information
Supplier parameters
Body dimensions
10.16x4.31x5.26mm
Coil resistance
150Ω
Coil voltage max.
6V DC
Coil voltage min.
3.8V DC
Contact current max.
0.5A
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
COTO TECHNOLOGY
Mounting
SMT
Operating temperature
-20...85°C
Optional equipment
electrostatic shield
Rated coil voltage
5V DC
Relay series
9814
Switched voltage
max. 100V DC
Switching capacity
3W
Terminal pitch
1.02mm
Type of relay
reed switch
Supplier's product code
9814-05-00TR
NomNr
9814-05-00TR
Brand
COTO TECHNOLOGY
Product ID
U-2217168
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
