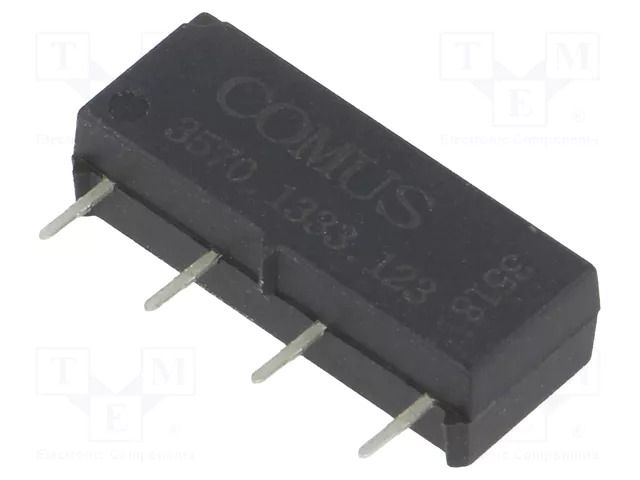

Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W COMUS
Product Code: 3570.1333.123
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W
Useful information
Supplier parameters
NomNr
3570.1333.123
Brand
COMUS
Product ID
U-83734
Body dimensions
19x7.7x5.08mm
Case
SIP
Coil resistance
1kΩ
Coil voltage max.
16V DC
Coil voltage min.
9V DC
Contact current max.
0.5A
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
COMUS
Mounting
THT
Operating temperature
-40...85°C
Optional equipment
diode
Rated coil voltage
12V DC
Relay features
high reliability
Relay series
3570
Switched voltage
max. 200V DC
Switching capacity
10W
Terminal pitch
5.08mm
Type of relay
reed switch
Supplier's product code
3570.1333.123
