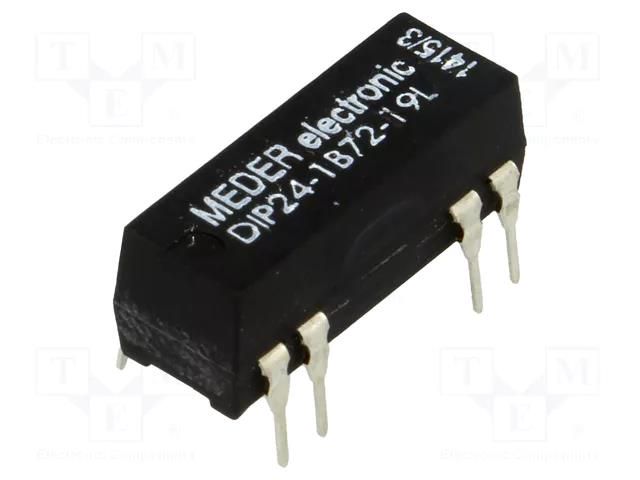

Relay: reed switch; SPST-NC; Ucoil: 24VDC; 1A; max.200VDC; 290mW MEDER
Product Code: DIP24-1B72-19L
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Relay: reed switch; SPST-NC; Ucoil: 24VDC; 1A; max.200VDC; 290mW
Useful information
Supplier parameters
NomNr
DIP24-1B72-19L
Body dimensions
19.3x7.5x7mm
Case
DIP14
Coil power consumption
290mW
Coil resistance
2kΩ
Coil voltage max.
30V DC
Coil voltage min.
16.8V DC
Contact current max.
1A
Contact resistance
0.15Ω
Contacts configuration
SPST-NC
Manufacturer
MEDER
Mounting
PCB
Operating temperature
-20...70°C
Rated coil voltage
24V DC
Relay series
DIP
Soldering temperature
260°C
Switched voltage
max. 200V DC
Terminal pitch
2.54mm
Type of relay
reed switch
Brand
MEDER
Supplier's product code
DIP24-1B72-19L
Product ID
U-164787
