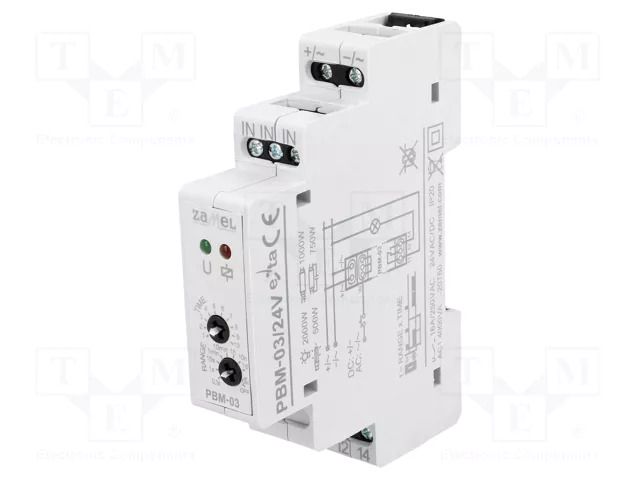

Relay: installation; bistable,impulse; NO; Ucoil: 24VAC,24VDC ZAMEL
Product Code: PBM-03/24V
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Relay: installation; bistable,impulse; NO; Ucoil: 24VAC,24VDC
Useful information
Supplier parameters
NomNr
PBM-03/24V
Body dimensions
90x17.5x66mm
Contacts configuration
NO
Counting range
0,1s...10days
Indication
LED
IP rating
IP20
Leads
screw terminals
Manufacturer
ZAMEL
Max. operating current
16A
Mounting
for DIN rail mounting
Operating temperature
-20...45°C
Rated coil voltage
24V DC
Relay features
timer
Relay series
PBM
Relay variant
bistable
Switched voltage
max. 250V AC
Switching method
OFF-ON
Type of relay
installation
Brand
ZAMEL
Supplier's product code
PBM-03/24V
Product ID
U-284742
