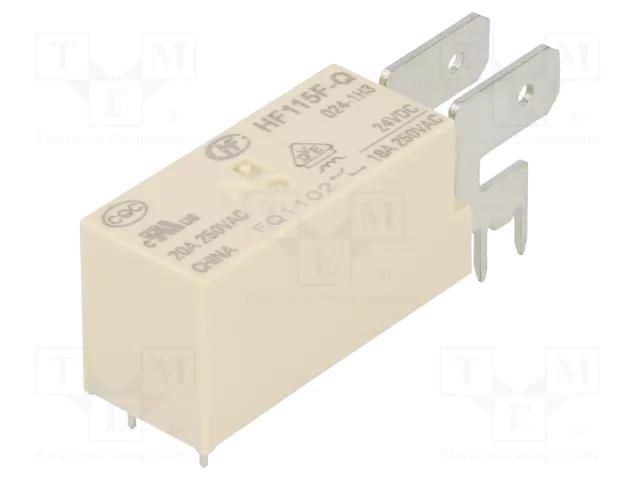

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC HONGFA RELAY
Product Code: HF115F-Q/024-1H3
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Brand
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC HONGFA RELAY
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC
Useful information
Supplier parameters
Product code
HF115F-Q/024-1H3
Brand
HONGFA RELAY
Supplier's product code
HF115F-Q/024-1H3
Product ID
U-204125
#Promotion
maintenance_202308
AC contacts rating @R
20A / 250V AC
Body dimensions
45x15.7x12.7mm
Coil power consumption
400mW
Coil resistance
1.44kΩ
Coil voltage max.
36V DC
Coil voltage min.
16.8V DC
Contact current max.
20A
Contact material
AgNi
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
20A / 24V DC
Manufacturer
HONGFA RELAY
Mounting
PCB
Operate time
15ms
Operating temperature
-40...125°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
8ms
Switched voltage
max. 300V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Unit price
No
