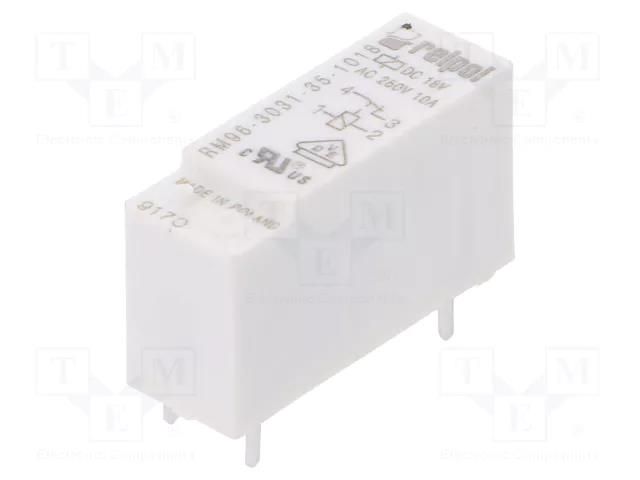

Relay: electromagnetic; SPST-NC; Ucoil: 18VDC; 8A; 8A/250VAC; RM96 RELPOL
Product Code: RM96-3031-35-1018
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Relay: electromagnetic; SPST-NC; Ucoil: 18VDC; 8A; 8A/250VAC; RM96
Useful information
Supplier parameters
Product code
RM96-3031-35-1018
AC contacts rating @R
8A / 250V AC
Body dimensions
28x10x16.2mm
Coil power consumption
300mW
Coil resistance
1.5kΩ
Coil voltage max.
44V DC
Coil voltage min.
12.6V DC
Contact current max.
8A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPST-NC
DC contacts rating @R
8A / 24V DC
Height
16.2mm
IP rating
IP67
Manufacturer
RELPOL
Mechanical durability
20000000 cycles
Mounting
PCB
Number of pins
4
OEM number
852872
Operate time
10ms
Operating temperature
-40...80°C
Rated coil voltage
18V DC
Relay series
RM96
Relay variant
miniature
Release time
5ms
Switched voltage
max. 120V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
RELPOL
Supplier's product code
RM96-3031-35-1018
Product ID
U-312170
