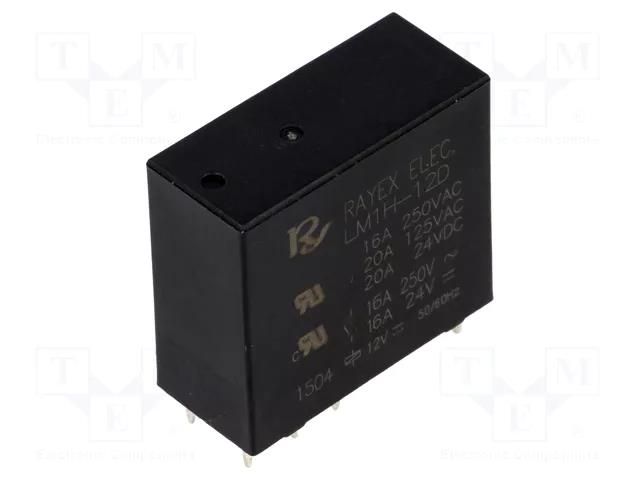

Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A Recoy/RAYEX ELECTRONICS
Product Code: LM1H-12D
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A
Useful information
Supplier parameters
Product code
LM1H-12D
Brand
Recoy/RAYEX ELECTRONICS
Supplier's product code
LM1H-12D
Product ID
U-239271
#Promotion
maintenance_202308
AC contacts rating @R
16A / 250V AC
Body dimensions
29x20.5x12.5mm
Coil current
44.4mA
Coil power consumption
530mW
Coil resistance
270Ω
Contact current max.
16A
Contact material
AgCdO
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
16A / 30V DC
Manufacturer
Recoy/RAYEX ELECTRONICS
Mounting
PCB
Operate time
15ms
Operating temperature
-40...80°C
Rated coil voltage
12V DC
Relay series
LM1H
Relay variant
miniature
Release time
10ms
Switched voltage
max. 30V DC
Terminal pitch
5mm
Type of relay
electromagnetic
