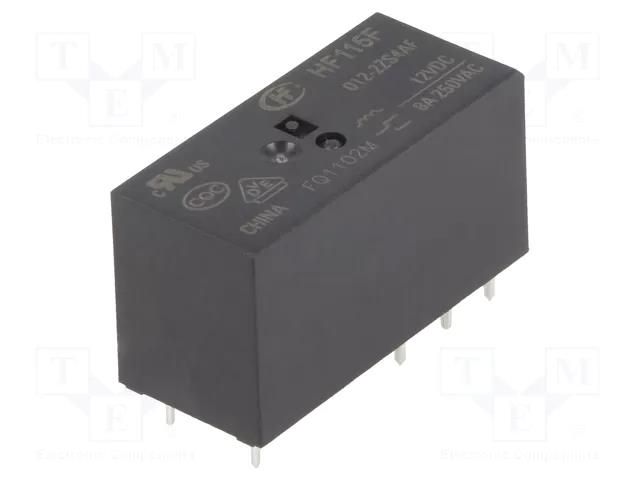

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/24VDC HONGFA RELAY
Product Code: HF115F/012-2ZS4AF
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Brand
Relay: electromagnetic; DPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/24VDC HONGFA RELAY
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/24VDC
Useful information
Supplier parameters
NomNr
HF115F/012-2ZS4AF
Supplier's product code
HF115F/012-2ZS4AF
Product ID
U-204084
AC contacts rating @R
8A / 250V AC
Body dimensions
29x12.7x15.7mm
Coil power consumption
400mW
Coil resistance
360Ω
Coil voltage max.
18V DC
Coil voltage min.
8.4V DC
Contact current max.
8A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
8A / 24V DC
Manufacturer
HONGFA RELAY
Mounting
PCB
Operate time
15ms
Operating temperature
-40...85°C
Rated coil voltage
12V DC
Relay series
HF115F
Relay variant
miniature
Release time
8ms
Switched voltage
max. 300V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
HONGFA RELAY
