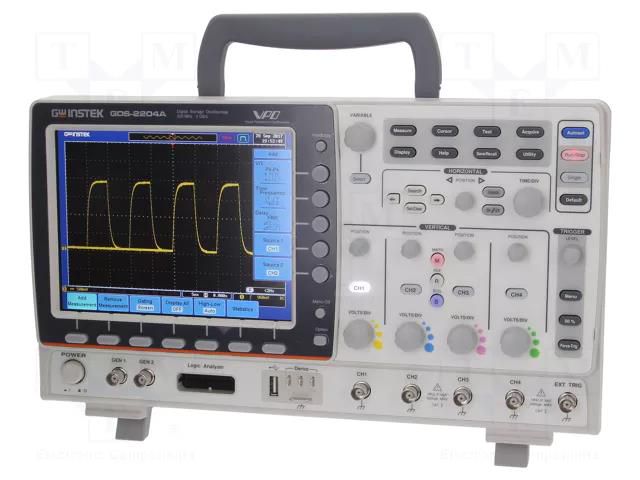

Oscilloscope: digital; DSO; Ch: 4; 200MHz; 2Mpts; LCD 8"; ≤1.7ns GW INSTEK
Product Code: GDS-2204A
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Oscilloscope: digital; DSO; Ch: 4; 200MHz; 2Mpts; LCD 8"; ≤1.7ns GW INSTEK
Useful information
Specifications
Supplier product description
Oscilloscope: digital; DSO; Ch: 4; 200MHz; 2Mpts; LCD 8"; ≤1.7ns
Useful information
Supplier parameters
Product code
GDS-2204A
Supplier's product code
GDS-2204A
Product ID
U-195489
Band
200MHz
Connectors for the country
Europe
Dimensions
380x220x145mm
Input coupling
AC, DC, GND
Input impedance
1MΩ/16pF
Input sensitivity
1mV/div...10V/div
Interface
RS232
Kind of display used
LCD 8"
Kind of oscilloscope
DSO
Kind of output connector
RJ45 socket
Manufacturer
GW INSTEK
Max. input voltage
300V
Measurement memory
24
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
2Mpts
Number of channels
4
Related items
DS2-8LA
Rise time
≤1.7ns
Sampling
2Gsps (in real time)
Software
included
Standard equipment
mains cable
Supply voltage
100...240V AC
Time base
1n...100s/div
Type of oscilloscope
digital
Trigger
impulse width
Trigger coupling
lowpass
Trigger modes
normal
Vertical resolution
8bit
Brand
GW INSTEK
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
