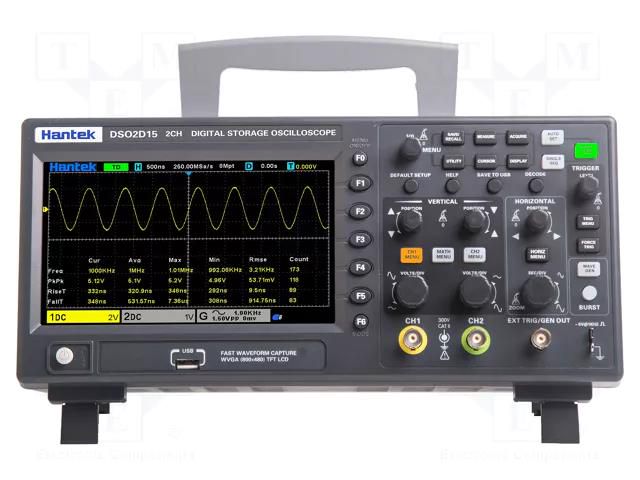

Oscilloscope: digital; DSO; Ch: 2; Band: 150MHz; 1Gsps; 4Mpts/ch HANTEK
Product Code: DSO2D15
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Oscilloscope: digital; DSO; Ch: 2; Band: 150MHz; 1Gsps; 4Mpts/ch
Useful information
Supplier parameters
Product code
DSO2D15
Brand
HANTEK
Supplier's product code
DSO2D15
Product ID
U-2214139
Additional functions
arbitrary waveform generator
Arbitrary waveform
record length: 4096
Band
150MHz
Body dimensions
318x110x150mm
Conform to the norm
EN 61010
Generators features
CMOS technology - reduced power consumption
Input coupling
AC, DC, GND
Input impedance
1MΩ/20pF
Interface
USB
Kind of display used
colour
Kind of modulation
AM
Kind of oscilloscope
DSO
Manufacturer
HANTEK
Manufacturer series
DSO2000
Max. input voltage
300V
Maximum waveform frequency
25MHz
Measuring instrument features
measurements by means of cursors
Memory record length
4Mpts/ch
Number of channels
2
Operating temperature
0...50°C
Rise time
≤2.4ns
Sampling
1Gsps
Software
included
Standard equipment
test leads
Supply voltage
100...240V AC
Supply voltage 400Hz
100...120V AC
Support
SCPI
Time base
2n...1ks/div
Type of oscilloscope
digital
Trigger
video signal
Trigger modes
automatic
Vertical resolution
8bit
Waveform frequency range
0,1Hz...25MHz (sinus waveform)
Waveforms
rectangular
