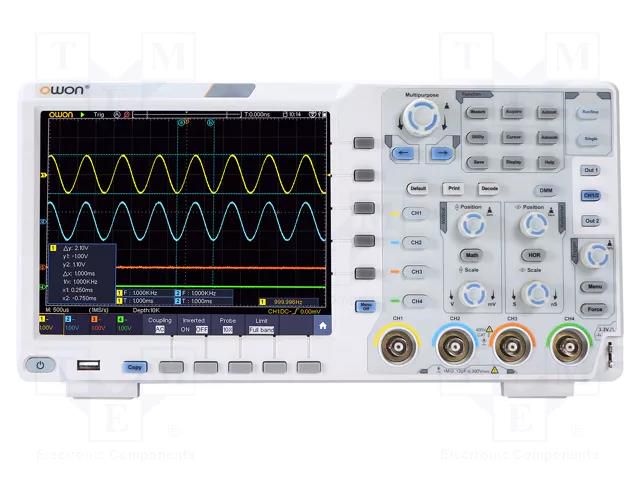

Oscilloscope: digital; Ch: 4; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; XDS OWON
Product Code: XDS3064AE
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Oscilloscope: digital; Ch: 4; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; XDS OWON
Useful information
Specifications
SKU
U-1919184
Product code
XDS3064AE
Supplier product description
Oscilloscope: digital; Ch: 4; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; XDS
Useful information
Supplier parameters
Product code
XDS3064AE
Product ID
U-1919184
Additional functions
frequency meter
Band
60MHz
Body dimensions
340x177x90mm
Connector
VGA + AV
Display resolution
800x600
Input coupling
AC, DC, GND
Input impedance
1MΩ/15pF
Input sensitivity
1mV/div...10V/div
Interface
USB
Kind of display used
LCD TFT 8"
Manufacturer
OWON
Manufacturer series
XDS
Max. input voltage
400V
Measurement memory
100
Measuring instrument features
measurements by means of cursors
Memory record length
40Mpts
Number of channels
4
Plug variant
EU
Related items
XDS-SOFTBAG
Rise time
≤5.8ns
Sampling
1Gsps
Software
LabVIEW
Standard equipment
USB cable
Supply voltage
100...240V AC
Time base
2n...1ks/div
Type of oscilloscope
digital
Touchpad
yes
Trigger
video signal
Trigger modes
automatic
Vertical resolution
14bit
Supplier's product code
XDS3064AE
