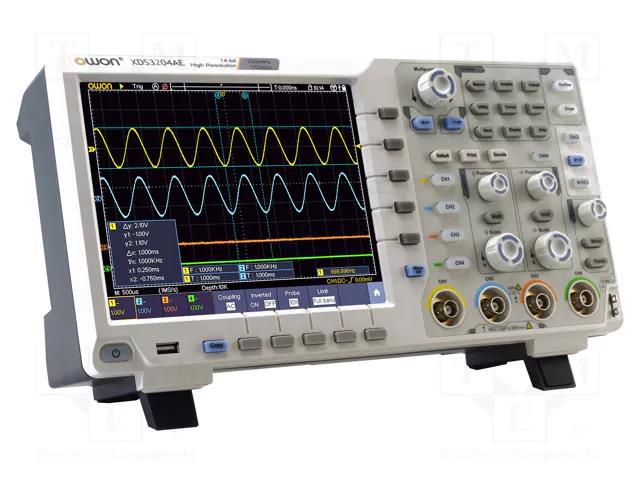

Oscilloscope: digital; Ch: 4; 200MHz; 1Gsps; 40Mpts; LCD TFT 8" OWON
Product Code: XDS3204AE
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Oscilloscope: digital; Ch: 4; 200MHz; 1Gsps; 40Mpts; LCD TFT 8" OWON
Useful information
Specifications
SKU
U-1919193
Product code
XDS3204AE
Supplier product description
Oscilloscope: digital; Ch: 4; 200MHz; 1Gsps; 40Mpts; LCD TFT 8"
Useful information
Supplier parameters
Product code
XDS3204AE
Supplier's product code
XDS3204AE
Product ID
U-1919193
Additional functions
frequency meter
Band
200MHz
Body dimensions
340x177x90mm
Connector
VGA + AV
Connectors for the country
Europe
Display resolution
800x600
Input coupling
AC, DC, GND
Input impedance
1MΩ/15pF
Input sensitivity
1mV/div...10V/div
Interface
LAN
Kind of display used
LCD TFT 8"
Manufacturer
OWON
Manufacturer series
XDS
Max. input voltage
400V
Measurement memory
100
Measuring instrument features
protocols analyse: I2C, CAN, SPI, RS232/UART
Memory record length
40Mpts
Number of channels
4
Related items
XDS-SOFTBAG
Rise time
≤1.75ns
Sampling
1Gsps
Software
LabVIEW
Standard equipment
oscilloscope probe (1 per channel)
Supply voltage
100...240V AC
Time base
1n...1ks/div
Type of oscilloscope
digital
Touchpad
yes
Trigger
I2C
Trigger modes
automatic
Vertical resolution
14bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
