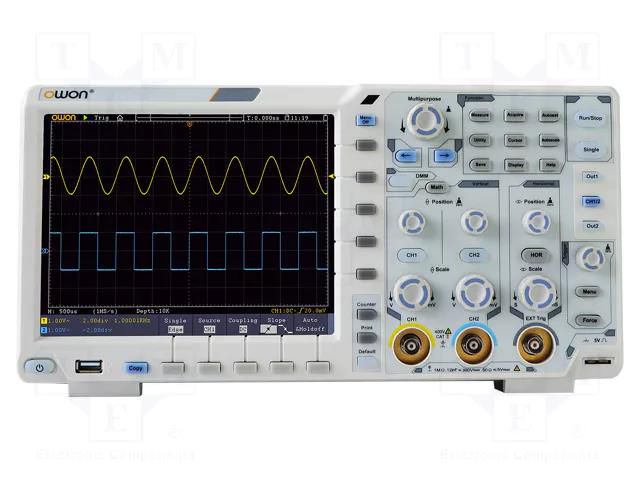

Oscilloscope: digital; Ch: 2; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; XDS OWON
Product Code: XDS3062A/B
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Oscilloscope: digital; Ch: 2; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; XDS OWON
Useful information
Specifications
SKU
U-2180653
Product code
XDS3062A/B
Supplier product description
Oscilloscope: digital; Ch: 2; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; XDS
Useful information
Supplier parameters
Product code
XDS3062A/B
Supplier's product code
XDS3062A/B
Product ID
U-2180653
Additional functions
frequency meter
Band
60MHz
Battery/ rechargeable battery
rechargeable battery Li-Ion 3,7V x1
Body dimensions
340x177x90mm
Connector
VGA + AV
Connectors for the country
Europe
Display resolution
800x600
Input coupling
AC, DC, GND
Input impedance
1MΩ/15pF
Input sensitivity
1mV/div...10V/div
Interface
USB
Kind of display used
LCD TFT 8"
Manufacturer
OWON
Manufacturer series
XDS
Max. input voltage
300V
Measurement memory
100
Measuring instrument features
measurements by means of cursors
Memory record length
40Mpts
Number of channels
2
Power consumption
15W
Power supply
rechargeable battery Li-Ion 3,7V x1
Related items
XDS-SOFTBAG
Rise time
≤5.85ns
Sampling
1Gsps
Software
LabVIEW
Standard equipment
USB cable
Supply voltage
100...240V AC
Time base
2n...1ks/div
Type of oscilloscope
digital
Trigger
Nth Edge
Trigger modes
automatic
Vertical resolution
12bit
