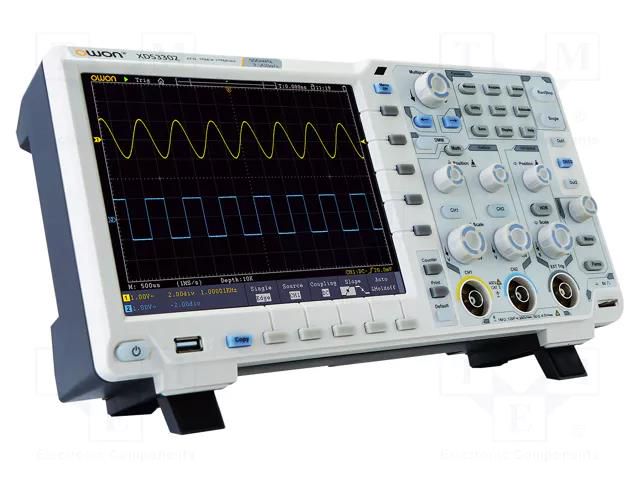

Oscilloscope: digital; Ch: 2; 300MHz; 2,5Gsps; 40Mpts; LCD TFT 8" OWON
Product Code: XDS3302
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Oscilloscope: digital; Ch: 2; 300MHz; 2,5Gsps; 40Mpts; LCD TFT 8" OWON
Useful information
Specifications
SKU
U-1919195
Product code
XDS3302
Supplier product description
Oscilloscope: digital; Ch: 2; 300MHz; 2,5Gsps; 40Mpts; LCD TFT 8"
Useful information
Supplier parameters
Product code
XDS3302
Supplier's product code
XDS3302
Product ID
U-1919195
Additional functions
frequency meter
Band
300MHz
Body dimensions
340x177x90mm
Connector
VGA + AV
Connectors for the country
Europe
Display resolution
800x600
Input coupling
AC, DC, GND
Input impedance
1MΩ/15pF
Input sensitivity
1mV/div...10V/div
Interface
LAN
Kind of display used
LCD TFT 8"
Manufacturer
OWON
Manufacturer series
XDS
Max. input voltage
300V
Measurement memory
100
Measuring instrument features
protocols analyse: I2C, CAN, SPI, RS232/UART
Memory record length
40Mpts
Number of channels
2
Power consumption
24W
Related items
XDS-SOFTBAG
Rise time
≤1.17ns
Sampling
2,5Gsps
Software
LabVIEW
Standard equipment
mains cable
Supply voltage
100...240V AC
Time base
1n...1ks/div
Type of oscilloscope
digital
Touchpad
yes
Trigger
rising-edge
Trigger modes
automatic
Vertical resolution
8bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
