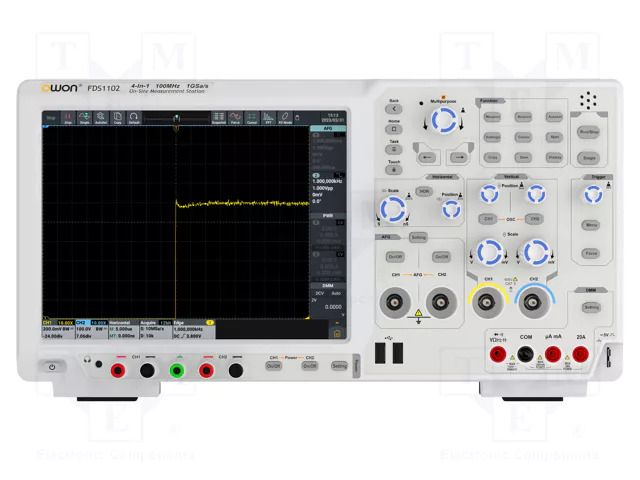

Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 10Mpts; LCD TFT 10,4" OWON
Product Code: FDS1102
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 10Mpts; LCD TFT 10,4" OWON
Specifications
SKU
U-3096730
Product code
FDS1102
Supplier product description
Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 10Mpts; LCD TFT 10,4"
Supplier parameters
Product code
FDS1102
Supplier's product code
FDS1102
Product ID
U-3096730
Additional functions
function generator
Band
100MHz
Body dimensions
421x221x115mm
Connectors for the country
Europe
Display resolution
1024x768
Input coupling
AC, DC, GND
Input impedance
1MΩ/15pF
Input sensitivity
1mV/div...10V/div
Interface
LAN
Kind of display used
LCD TFT 10,4"
Manufacturer
OWON
Manufacturer series
FDS
Max. input voltage
300V
Measurement
frequency
Measurement memory
100
Measuring instrument features
measurements by means of cursors
Memory record length
10Mpts
Number of channels
2
Output current
3A
Output current 2
3A
Output voltage
15V DC
Output voltage 2
15V DC
Power consumption
30W
Rise time
≤3.5ns
Sampling
1Gsps
Software
download from manufacturers website
Standard equipment
user's manual
Supply voltage
100...240V AC
Type of oscilloscope
digital
Touchpad
yes
Trigger
video signal
Trigger modes
automatic
Vertical resolution
8bit
Waveform frequency range
1µHz...1MHz (ramp waveform)
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
