Multimeter UT139C CATIII frequency, capasitance, temperature, continuity buzzer, diode UNI-T
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Products purchased together
Product description
DC voltage: 600mV/6V/60V/600V/1000V(±0.5%+2); AC voltage:6V/60V/600V(±0.8%+3); DC current:600uA//10A(±0.8%+2); AC current: 600uA/10A(±1%+3); Resistance:600Ω/6kΩ/60kΩ/60MΩ(±0.8%); Capasity: 9.999nF/99.99mF; Frequency 10Hz-10MHz, Temperatere -40+1000°C; Power AA1.5x2(kompl)
True RMS multimeter with automatic adjustment of the range, allows to measure the voltage of DC and AC up to 600 V, the voltage of the flow of DC and AC current to 10 A, resistance, capacitance and frequency. Temperature measurement in range from -40 ÷ 200 °C, allows attached probe. The continuity is indicated via acoustic signal. The device has the function of recording the last measurement and backlight. The meter is powered by two AA 1.5 V batteries, which are also in the set. Digital indicator informs about the level of discharge. Everything is sent in well- protected, original box.
Specifications:
- Voltage DC 600 mV / 6 V / 60 V / 600 V DC
- Alternating voltage 6 V / 60 V / 600 V
- Current DC 600 µA / 6 mA / 60 mA / 600 mA / 6 A / 10 A DC
- AC 600 µA / 6 mA / 60 mA / 600 mA / 6 A / 10 A AC
- Impedance 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
- Capacity: 9,999 nF / 99.99 nF / 999.9 nF / 99.99 µF / 999.9 µF / 9.999 mF / 99.99 mF
- Frequency from 10 Hz to 10 MHz
- Temperatures from -40 ° C to 1000 ° C
- Automatic range selection
- Sounder
- Diode Tester
- Data storage function
- Battery indicator
- Backlight
- LCD Display 1999 (58 x 36mm)
- Dimensions 180 x 87 x 47 mm
- Power supply 2 x 1.5V AA
- Weight: 370 g

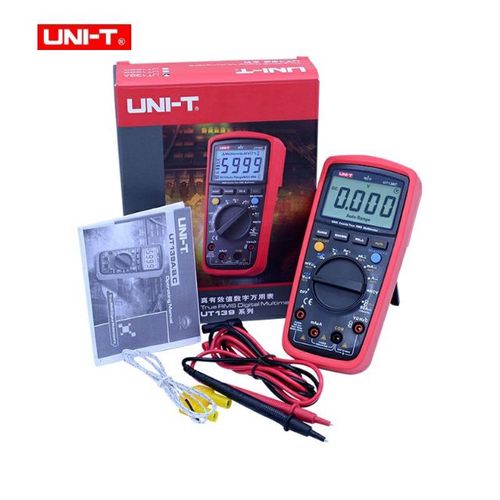

Included:
- Test leads
- Temperature probe
- Batteries: 2x AA 1.5V (fingers)
- instruction
- Warranty: 24 months
Useful information
Specifications
Experimental product description generated by artificial intelligence

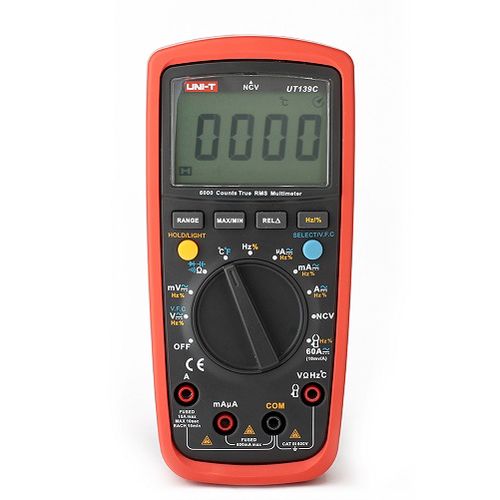

UNI-T UT139C Digital Multimeter
The UNI-T UT139C CATIII is a versatile True RMS digital multimeter designed for various applications. This handheld device offers a wide range of functions and features, making it an ideal tool for professionals and hobbyists alike.
Key Features and Functions
- True RMS Measurement: Ensures accurate readings even with non-sinusoidal waveforms.
- Auto-Ranging: Simplifies operation by automatically selecting the appropriate measurement range.
- Multiple Measurement Functions: Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature, and more.
- Continuity Buzzer: Quickly identifies continuity in circuits.
- Diode Test: Checks the functionality of diodes.
- NCV (Non-Contact Voltage) Detection: Safely detects the presence of AC voltage without physical contact.
- CAT III 600V Safety Rating: Provides protection in industrial environments.
Applications
The UNI-T UT139C is suitable for a wide range of applications, including:
- Electrical troubleshooting and repair
- Electronics testing and development
- Automotive diagnostics
- HVAC/R maintenance
- Industrial maintenance
Why Choose the UNI-T UT139C?
The UNI-T UT139C stands out due to its combination of accuracy, versatility, and safety features. Its comprehensive functionality and user-friendly design make it a valuable asset for any professional or serious hobbyist.
| Feature | Benefit |
|---|---|
| True RMS | Accurate readings for various waveforms |
| Auto-ranging | Simplified operation |
| Multiple functions | Versatility for diverse applications |
| Safety rating | Protection in demanding environments |
Order your UNI-T UT139C today and experience the difference!
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
