Product description
AC/DC voltage 6/12/24/50/120/230/400/690V; Phase rotation 100~690V; Frequency 50-400Hz; Continuity buzzer 0-100kΩ; RCD 230V(50-400Hz); IP65; Backlight, Auto range; Polarity detection; ect.; LCD 12x23mm LED; 2 x 1.5V battery (AAA)

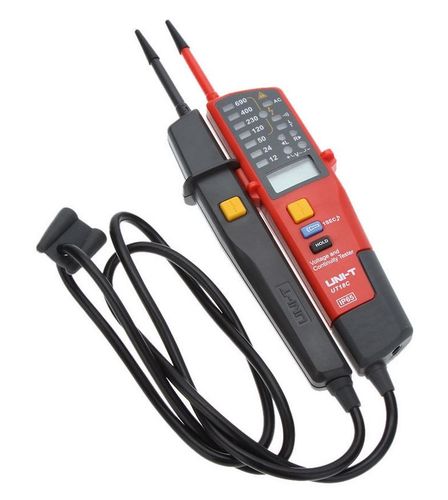

Voltage and continuity tester model UT18C
Prekinis ženklas: Uni-t
Voltage: 12 V/24 V/50 V/120 V/230 V/400 V/690 V; (1,5%+3)
Phase Rotation Test:
- Operating Voltage: 100 V-690 V
- Frequency 50 Hz-60 Hz
Single Lead(L2)Voltage Detection:
- Operating Voltage 100 V-690 V
- Frequency 50 Hz-400 Hz
Continuity Test:
- Resistance: 0-100 kOhm
- Beeper and LED light Indicator
RCD Test: Operating Voltage 230 V (50 Hz-400 Hz)
Polarity Detection: Positive and Negative
Self-inspection: All LED or LCD indicator
No Power test: Operating voltage 50 VAC/120 VDC~690 VDC/AC
IP65
Auto Range: All range
Exceed Voltage: Voltage Range 713 V-788 V
Auto standby: standby current <10 ua
Silent mode: All range
Work Light: All range
Low Battery Indication: Voltage range 2,2 V-2,4 V
LCD Display:
- Voltage: 6 V-690 V; ±(1,5%+5)
- Frequency: 40 Hz~400 Hz; ±(3%+5)
----------
Power: 1,5 V Batteries (R03) x2
LCD Size: 31 × 20 mm
Product Net Weight: 280 g
Product Size: 272 x 85 x 31 mm
Specifications | Range | UT18C |
Voltage (V) | 12V | 8V±1V |
24V | 18V±2V | |
50V | 38V±4V | |
120V | 94V±8V | |
230V | 180V±14V | |
400V | 325V±15V | |
690V | 562V±24V | |
Phase rotation test | 57Vac~400Vac (3 phase) | √ |
Frequency: 50Hz~400Hz | ||
Single lead (L2) voltage detection | Operating voltage: 100V~690V | √ |
Frequency: 50Hz~400Hz | ||
Continuity test | Resistance: 0Ω~100kΩ (+50% accuracy) | √ |
Beeper and LED light indication | ||
RCD test | Operating voltage: 230V (50Hz~400Hz) | √ |
Polarity detection | Positive & Negative | √ |
Self-inspection | All LED or LCD | √ |
No power test | Operating voltage: 100~690V | √ |
Features | ||
Voltage indication | LED | |
Exceed voltage | Voltage range: 713V~788V | √ |
Auto standby | Standby current<10μA | √ |
Slient mode | All range | √ |
Work light | √ | |
Low battery indication | Around 2.5V | √ |
LCD display (voltage) | 6V~690V | ±(1.5%+5) |
LCD display (Frequency) | 40Hz~400Hz | ±(3%+5) |
IP65 | √ | |
General Characteristics | ||
Power | 1.5V battery (R03)×2 | |
Display | UT18C: 31mm x 20mm; UT18D: 73.5mm x 35.5mm | |
Product color | Red and grey | |
Product net weight | 280g | |
Product size (W x H x D) | 272mm x 85mm x 31mm | |
Standard accessories | Batteries | |
Standard individual packing | Blister, English manual | |
Standard quantity per carton | 30pcs | |
Standard carton measurement | 440mm x 295mm x 455mm | |
Standard carton gross weight | 17.5kg |
