Motor Driver HAT TB6612FNG - dual channel 12V/3A for Raspberry Pi - SB Components SKU21789
Specifications
Supplier product description

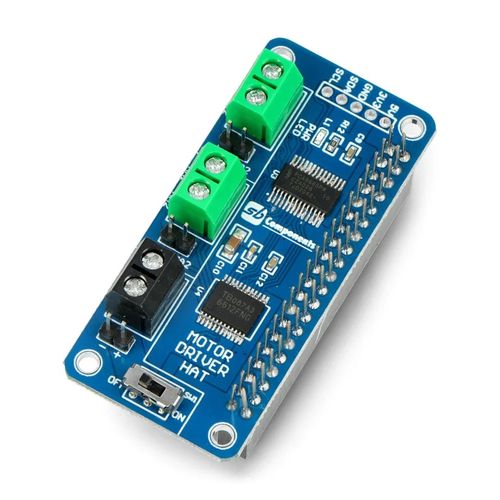

Overlay for Raspberry Pi equipped with 40-pin GPIO connector, including model 4B / 3B+ / 3B. HAT features a TB6612FNG dual channel DC motor driver, operating from 6 V to 12 V with up to 3 A current draw. The driver uses the I2C interface, so it uses only two pins of the minicomputer. The PCA9685 chip used allows the speed of the motors to be controlled using a hardware PWM interface at 12-bit resolution. The HAT overlay can be battery powered through the VIN terminal.
Supplier parameters
Product code
SBC-20401
Brand
SB Components
Supplier's product code
SBC-20401
Product ID
U-2423135
