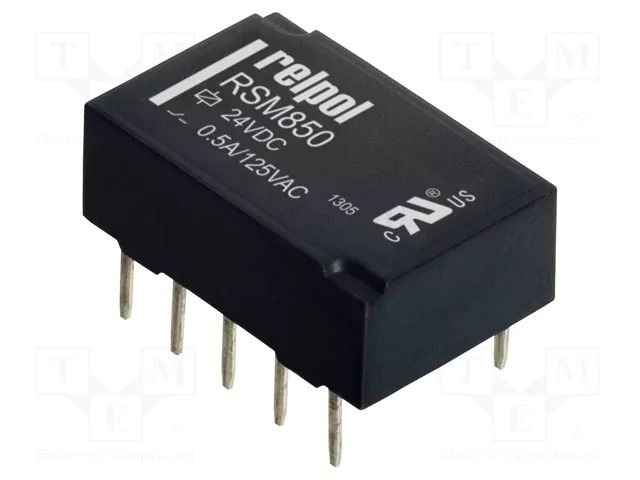

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; RSM850 RELPOL
Product Code: RSM8506112851024
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; RSM850
Useful information
Supplier parameters
Product code
RSM8506112851024
AC contacts rating @R
0.5A / 125V AC
Body dimensions
14.3x9.3x5.4mm
Coil power consumption
140mW
Coil resistance
2.88kΩ
Coil voltage max.
48V DC
Coil voltage min.
18V DC
Contact current max.
2A
Contact material
AgPd/Au 0,2μm
Contact resistance
50mΩ
Contacts configuration
DPDT
DC contacts rating @R
2A / 30V DC
Electrical life
100000 cycles
IP rating
IP64
Manufacturer
RELPOL
Mechanical durability
1000000000 cycles
Mounting
THT
OEM number
2611709
Operate time
3ms
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay series
RSM850
Relay variant
subminiature
Release time
3ms
Switched voltage
max. 30V DC
Terminal pitch
2.54mm
Type of relay
electromagnetic
Brand
RELPOL
Supplier's product code
RSM8506112851024
Product ID
U-314051
