MikroTik CCR2004-16G-2S+ | Router | 16x RJ45 1000Mb/s, 2x SFP+, MIKROTIK
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description

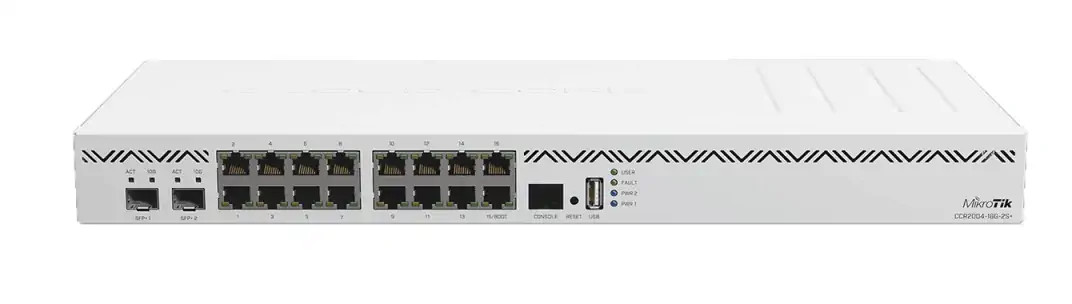

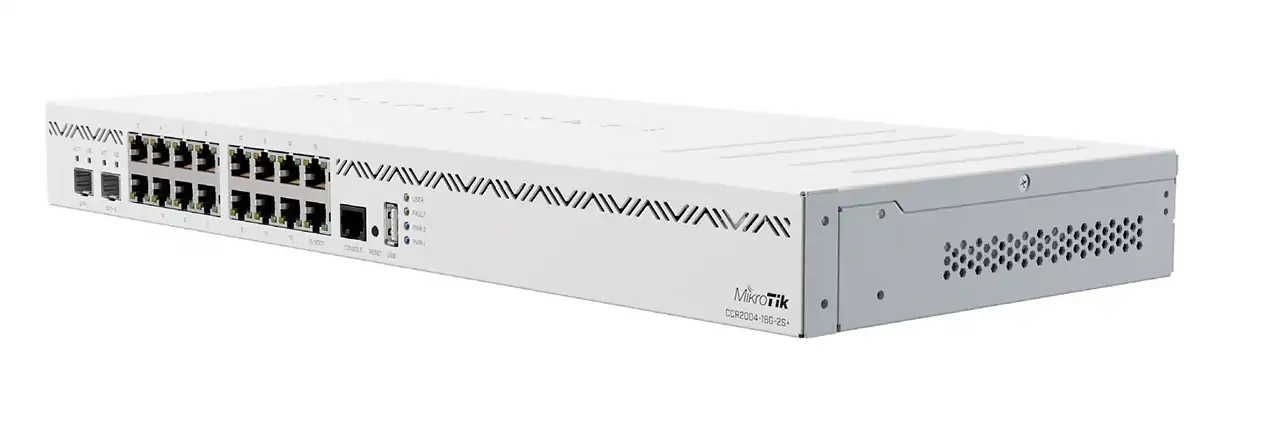

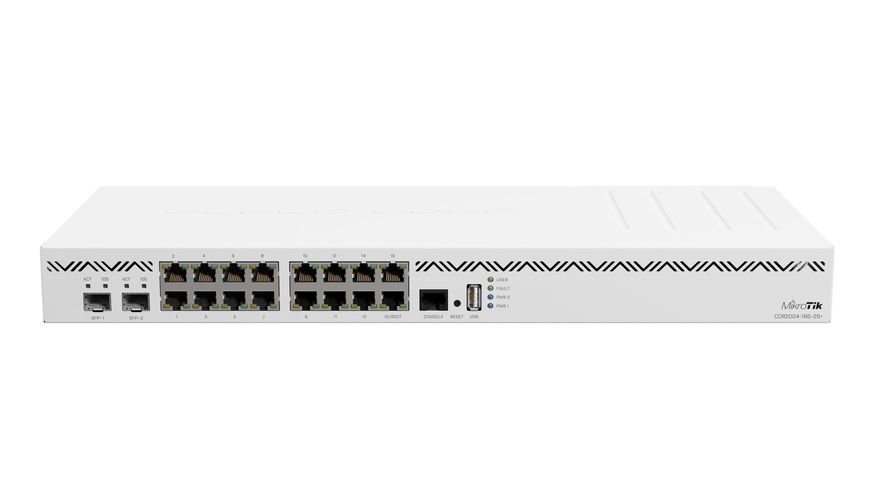

MikroTik CCR2004-16G-2S router
MikroTik CCR2004-16G-2S router is a powerful network device built on a quad-core Cortex-A57 1.7GHz processor. The router is equipped with 16 RJ45 Gigabit Ethernet ports and 2 10G SFP slots , as well as a full-size RJ-45 console port and a USB 3.0 connector on the front panel.
Power redundancy and excellent cooling

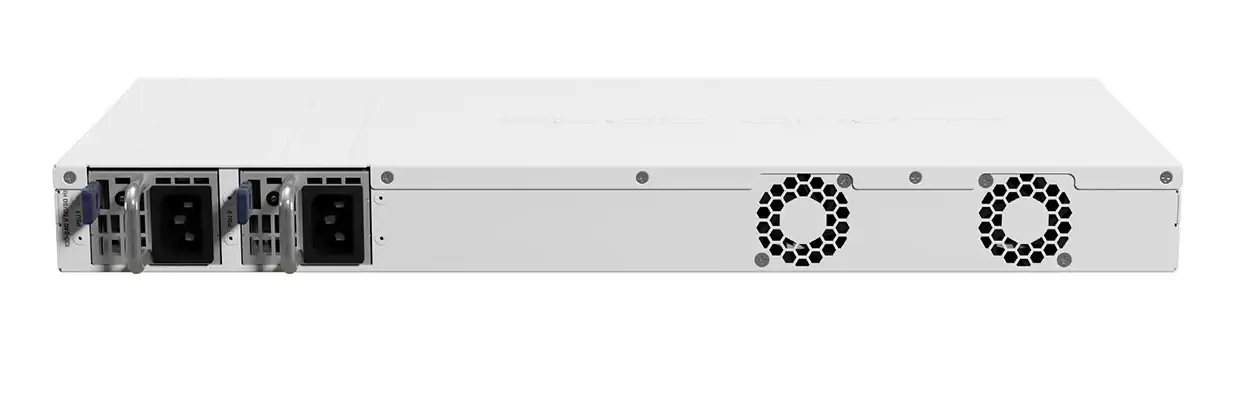

MikroTik CCR2004-16G-2S router is placed in a classic rack casing. The configuration includes 2 integrated power supplies with redundancy function. Active cooling is provided. Each group of 8 RJ45 interfaces is connected to a separate chip from Marvell Amethyst family. Each chip has a full duplex 10Gbps line connected to the CPU.
The perfect solution for your company's internal network
One of the most suitable applications for this device is the use of Gigabit Ethernet connections for the internal network and SFP for uplink and downlink. The router is a versatile solution for small and medium sized businesses.
Main features
Main features
- Best single-core performance in the CCR family
- 16 Gigabit Ethernet ports
- 2 SFP ports (10 Gbps)
- Full-sized USB port
- RJ45 serial port
- 2 built-in redundant power supplies
- Active cooling
- 1U rack mount enclosure
| Number of LAN ports | 16x [10/100/1000M (RJ45)] |
| Number of LAN ports | 2x [10G (SFP+)] |
| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| Certification | CE, EAC, ROHS |
| Depth | 44 |
| Ethernet interface type | 16 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 |
| Ethernet WAN | Yes |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Harmonized System (HS) code | 85176990 |
| Height | 210 |
| Input current | 0.9 |
| Installed SFP+ modules quantity | 2 |
| Management | CLI - Command Line Interface |
| Management | By web browser |
| Mean time between failures (MTBF) | 200000 |
| Mobile network generation | No |
| Operating temperature (T-T) | -20 - 60 |
| Power consumption (typical) | 48 |
| Power source type | AC |
| Product colour | White |
| Sustainability certificates | RoHS |
| Temperature monitoring | Yes |
| Type of case | Rack (1U) |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Voltage monitoring | Yes |
| Width | 443 |
