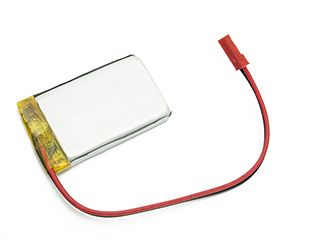

LiPo cell 3.7 190mAh PCM 4.0x20x30mm with JST terminal (LPLP402030)
Product Code: AKY0477/B
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Products purchased together
Product description
Weight
0.009 kg.
Brand
Lithium-polymer battery with a safety PCM circuit and connector
● High current efficiency
● No memory effect
● Good value of the dimensions and capacity of the cell
● High-quality safety PCM circuit, controls processes of charging and discharging
● Easy to install - with a leads in the form of wires and special connector
● Slow spontaneous discharge cells
● Application, among others, mobile devices: cameras and digital cameras, PDAs, mobile phones, multimedia players.
Very popular in logistics systems GPS and medicine.
| Rechargeable Battery Type | Li-Po |
| Package/Case | 4.0x20x30 |
| Thickness | 4.0mm |
| Width | 20mm |
| High | 30mm |
| Rated Voltage | 3.7V |
| Capacitance | 190mAh |
| Protection | PCM |
| Wires | 150mm |
| Connector type | JST SYP-02T-1 |
| Pins | 2 |
| Lead Spacing | 2.54mm |
| Nominal Charge Current | 0.2C |
| Nominal Discharge Current | 0.2C |
| Max Charge Current | 1C |
| Max Discharge Current | 1C |
| Tₘᵢₙ | -20°C |
| Tₘₐₓ | 60°C |
Specifications
SKU
350500
Weight
0.009 kg.
Height, mm
4
Electrochemical structure
Climb
Brand
Width, mm
20
Capacity (mAh), mAh
190
Product code
AKY0477/B
Depth, mm
30
Battery voltage, V
3.7
Nominal discharge current C
0.2
