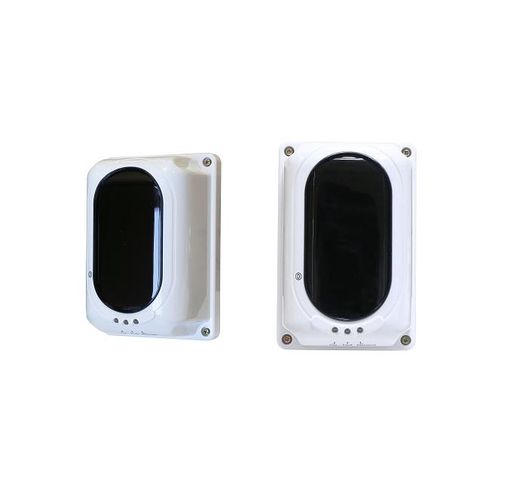

Linear reflective smoke barrier TR6100

Product Code: BDTR6100
no gallery
no gallery
More similar products

Price range

AmountPrice with tax (pcs)
1+
€286.96€286.96
wholesale

Min. qty: 1

Multiplier: 1

Total:

€286.96
2025-01-07 Estimated delivery

*Total delivery cost will be calculated in the checkout.

Warehouse in Europe

Warehouse in Europe

90% positive feedback

94%+ positive feedback

30 day money back guarantee

30 day money back guarantee

Product description

Linear reflective smoke barrier TR6100

Specifications

SKU
U-3019786
Product code
BDTR6100

Supplier product description

  • Quad range wide tracking from 8 to 100 meters
  • Supply Voltage: 20V to 28V DC
  • Operating temperature: -10°C to 50°C
  • The self-diagnosis function can monitor internal faults
  • Easy alignment, with digital guide display and laser beam pointer

  • General
  • ApprovalsLPCB / CE-CPR
  • Operating Voltage20 V to 28 V DC
  • Current ParametersStandby:23mA Commission:56mA Alarm:33mA
  • Beam Sensor SensitivityLevel 1: 2.6 dB High Sensitivity Level 2: 3.8 dB Medium Sensitivity Level 3: 5.8 dB Low Sensitivity
  • Beam Pathway LengthSpan 1: 8 to 20 meters Short Path (1x mirror reflector required) Span 2: 20 to 40 meters Short Path (1x mirror reflector required) Span 3: 40 to 70 meters Normal Path (4x mirror reflector required) Span 4: 70 to 100 meters Long Path (4x mirror reflector required)
  • Beam Path Angle± 0.4O Directional
  • Alignment GuideLaser Beam Pointer
  • Digital Display GuideNixie Tube
  • LED Indicator GuideRed: Fire; Yellow: Fault; Green: Alignment
  • Reset TimeLess than 2 Second (Power Cut)
  • Relay Capacity [Fire/Fault]Normally Open/ 2.0 A; 30 VDC
  • Material / ColourABS / White
  • Dimension / WeightL:190.87 x W:126.87 x H:91.96 mm / 440 gm
  • Weight0.130 Kg with base
  • AccessoriesMounting Bracket, 4 x Mirror Reflector
  • Operating Temperature-10°C to 55°C
  • Protection RatingIP30 [IP66 glue seal-For permanent fixing] Indoor Application
  • Humidity0 to 95% RH, Non condensing

Supplier parameters

Product code
BDTR6100
Category
Beam Detectors
Supplier's product code
BDTR6100
Product ID
U-3019786
