LED dimmer 100-240Vac, 200W TRIAC, works in MATTER network

Features

• Matter thread AC phase cut dimmer

• 100-240VAC wide input and output voltage

• Supports resistive loads, capacitive loads or inductive loads

• 1 channel output, up to 400W

• Input and output with screw terminals, safe and reliable

• Trailing edge dimming

• Compatible with universal Matter gateways: the latest Apple HomePod mini, Google Home,

Amazon Echo devices etc.

• Can be controlled through the Apple Home app, Google Home app, Amazon Alexa app

• Can be voice controlled through Apple Siri, Google Assistant, Amazon Alexa

• Mini Size, easy to be installed into a standard wall box

• Waterproof grade: IP20

Main Features:

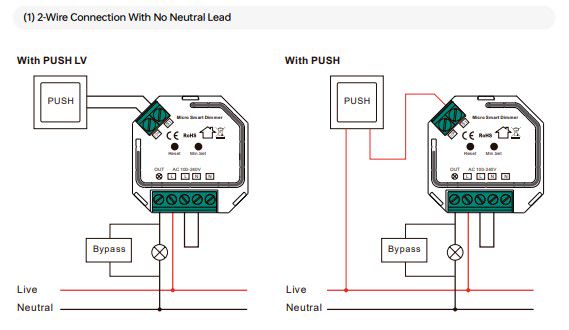

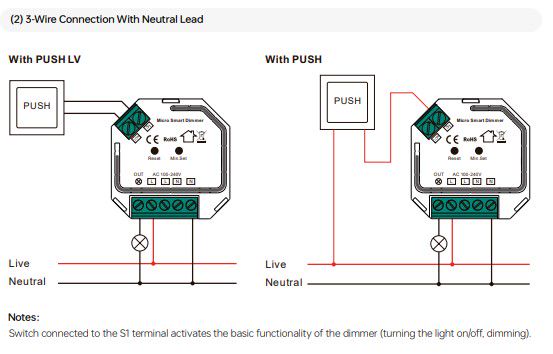

• Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead

• Advanced microprocessor control

• Implemented algorithm of smart light source detection

• Active power and energy metering functionality

• Soft start function

• Innovative minimum dimming level and startup brightness setting function

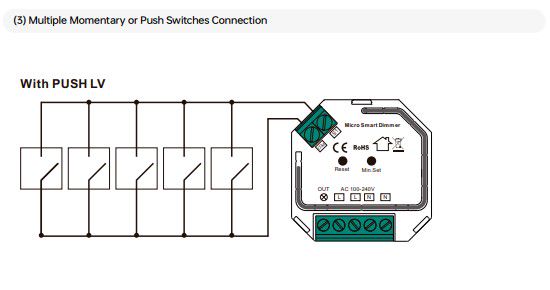

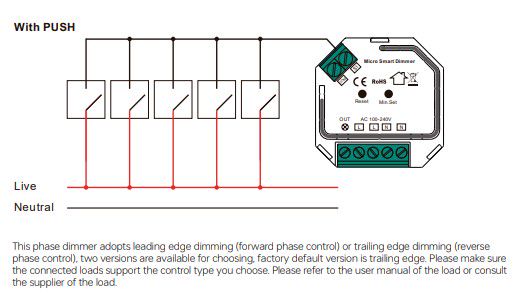

• Works with various types of switches – momentary, toggle, three-way, etc.

• Active element: semiconductor electronic switch

• To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of

applicable regulations

• The Bypass is an extension unit

As a dimmer it operates under the following loads:

Conventional incandescent and HV halogen light sources

• ELV halogen lamps and dimmable LED bulbs (with electronic transformers)

• MLV halogen lamps (with ferromagnetic transformers)

• Dimmable LED bulbs

• Dimmable compact fluorescent CFL tube lamps

• Supported dimmable light sources (power factor > 0.5) with minimal power of 3VA using the Bypass

(depending on the type of load)
